Pneumatiske aktuatorer

Swagelok SC00015-3U F04-N-DS-11 AZNX MS-A15-3 DIN

SKU: 4018

På lager

Brugt
Indhentet fra arbejdsmiljø

Pris på forespørgsel

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Vigtigt: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garanti Perioder efter Tilstand

Ny 12 måneder

Renoveret DOA

Brugt DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

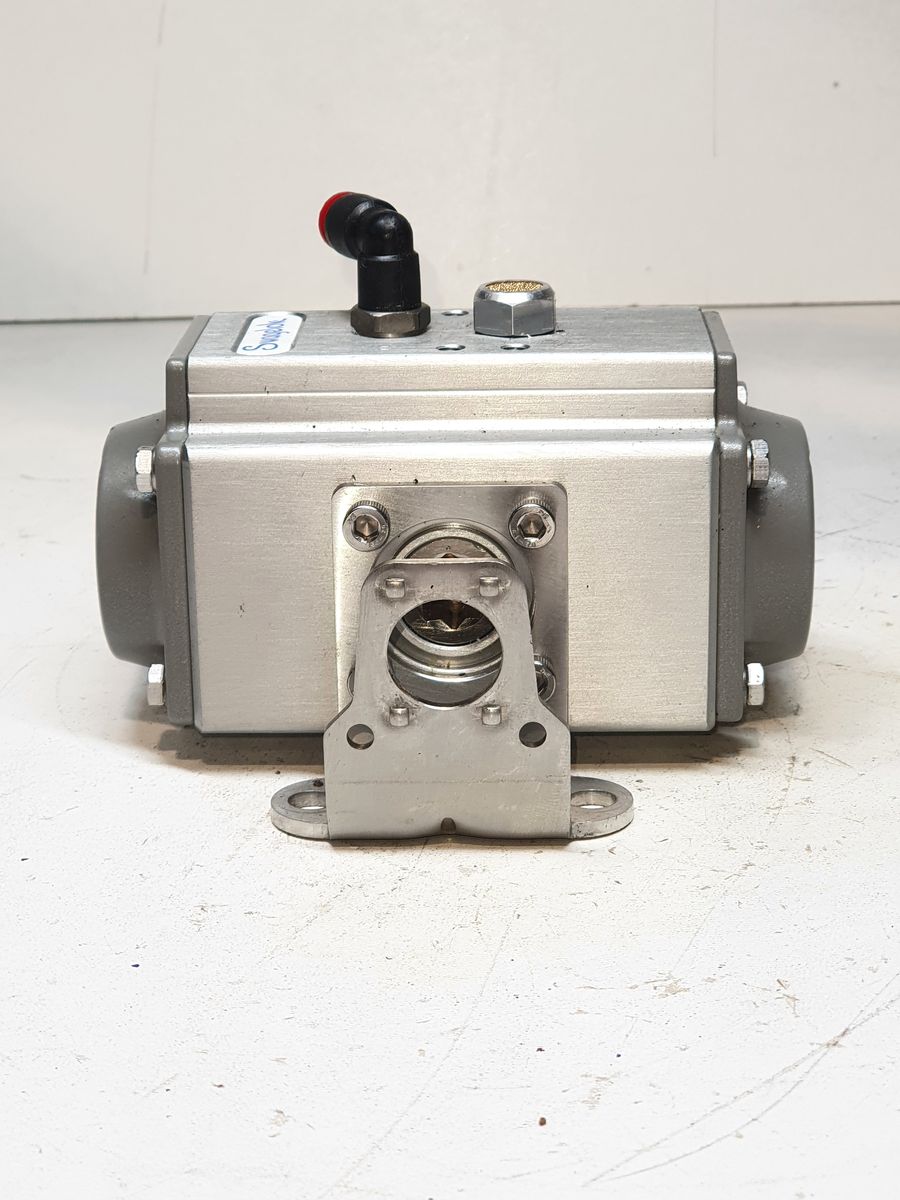

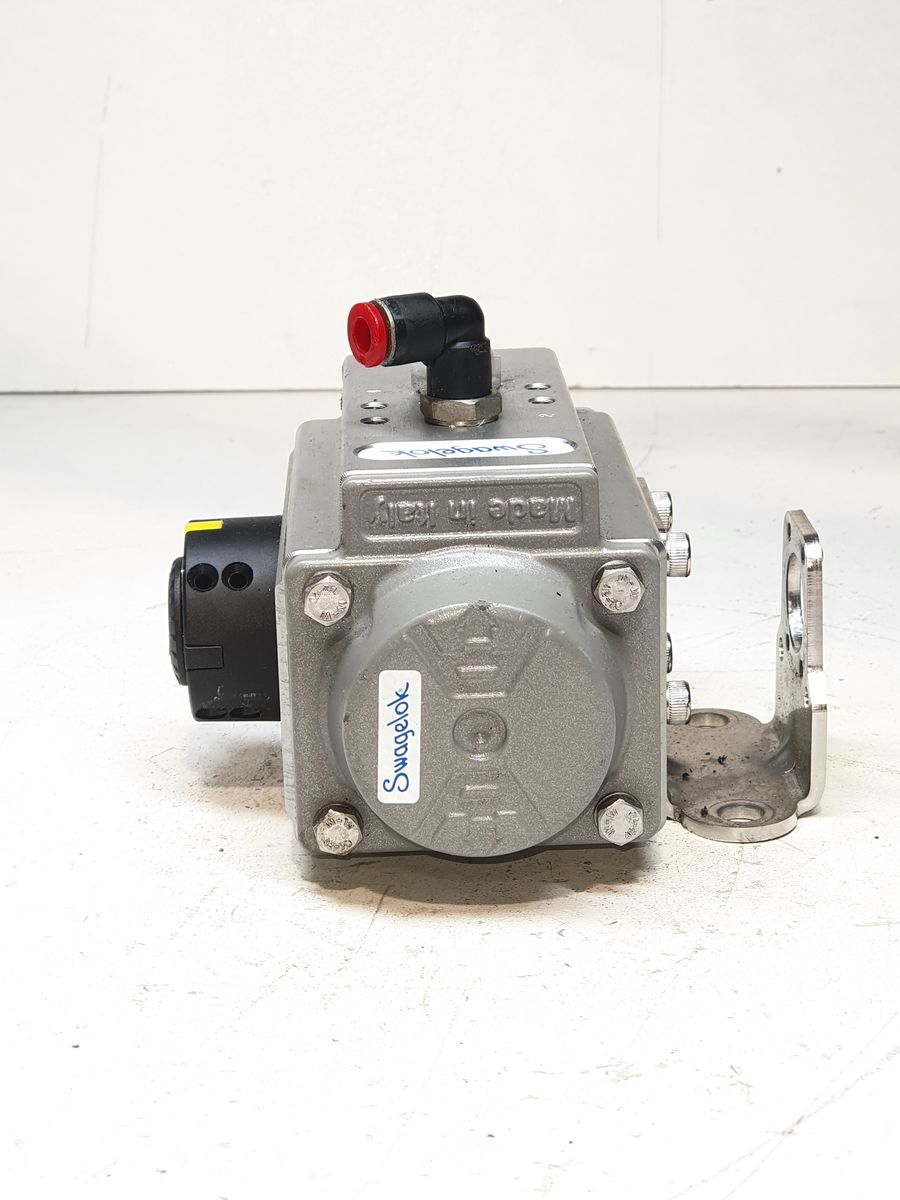

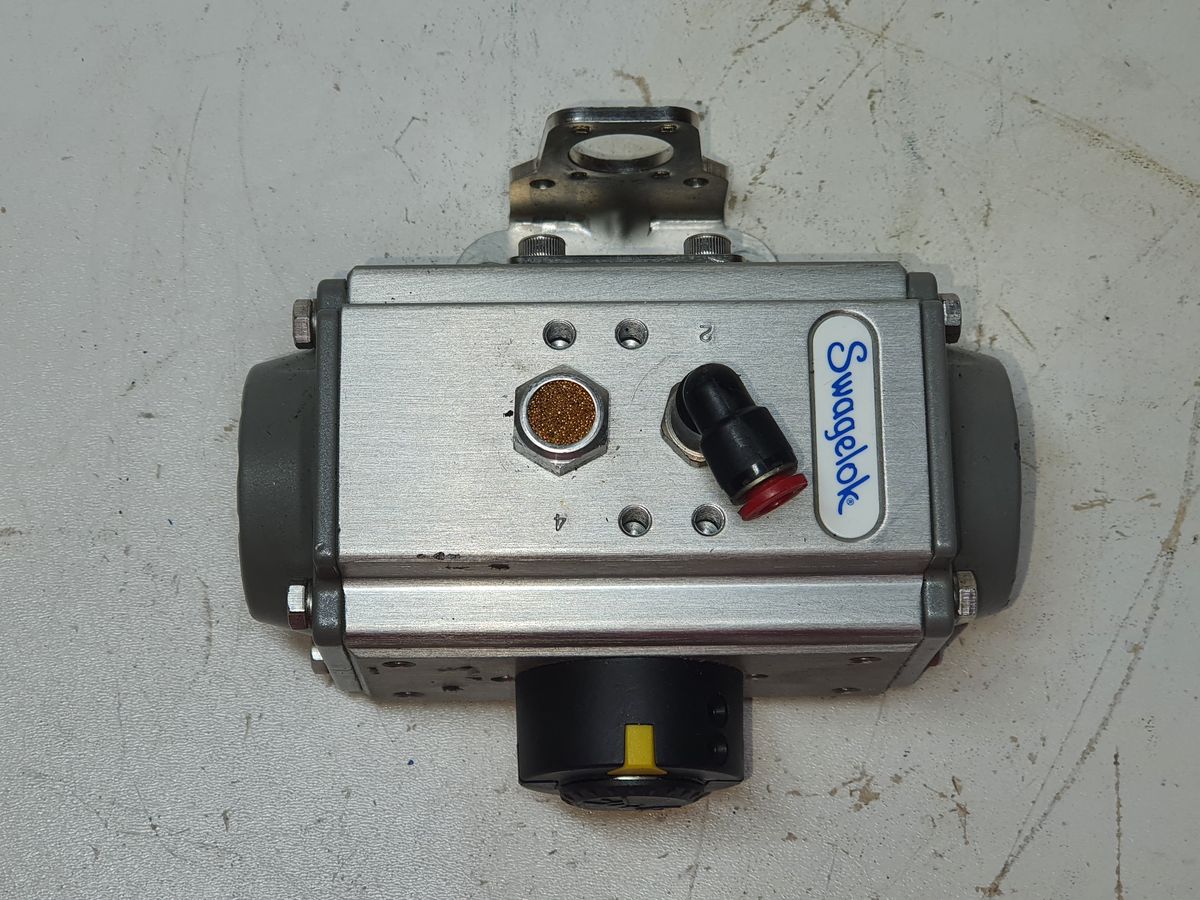

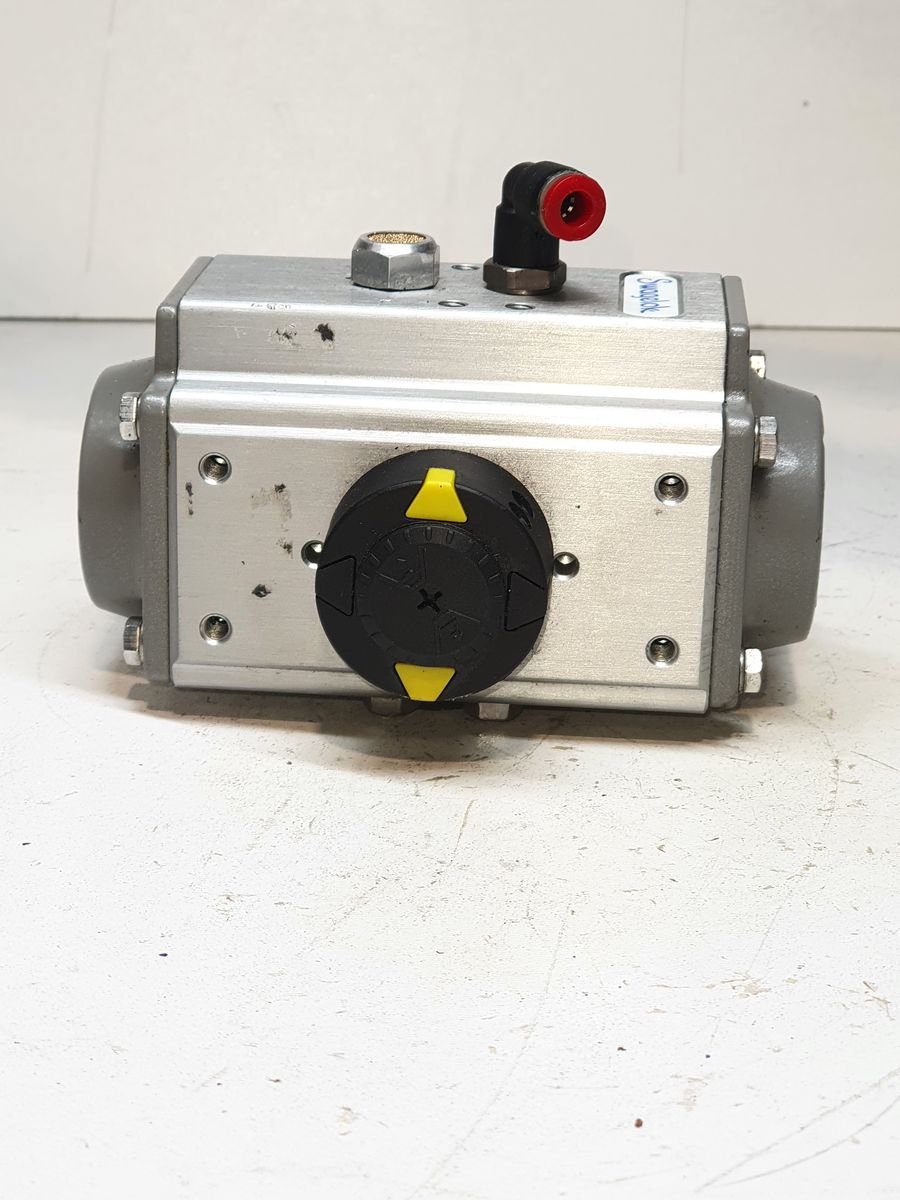

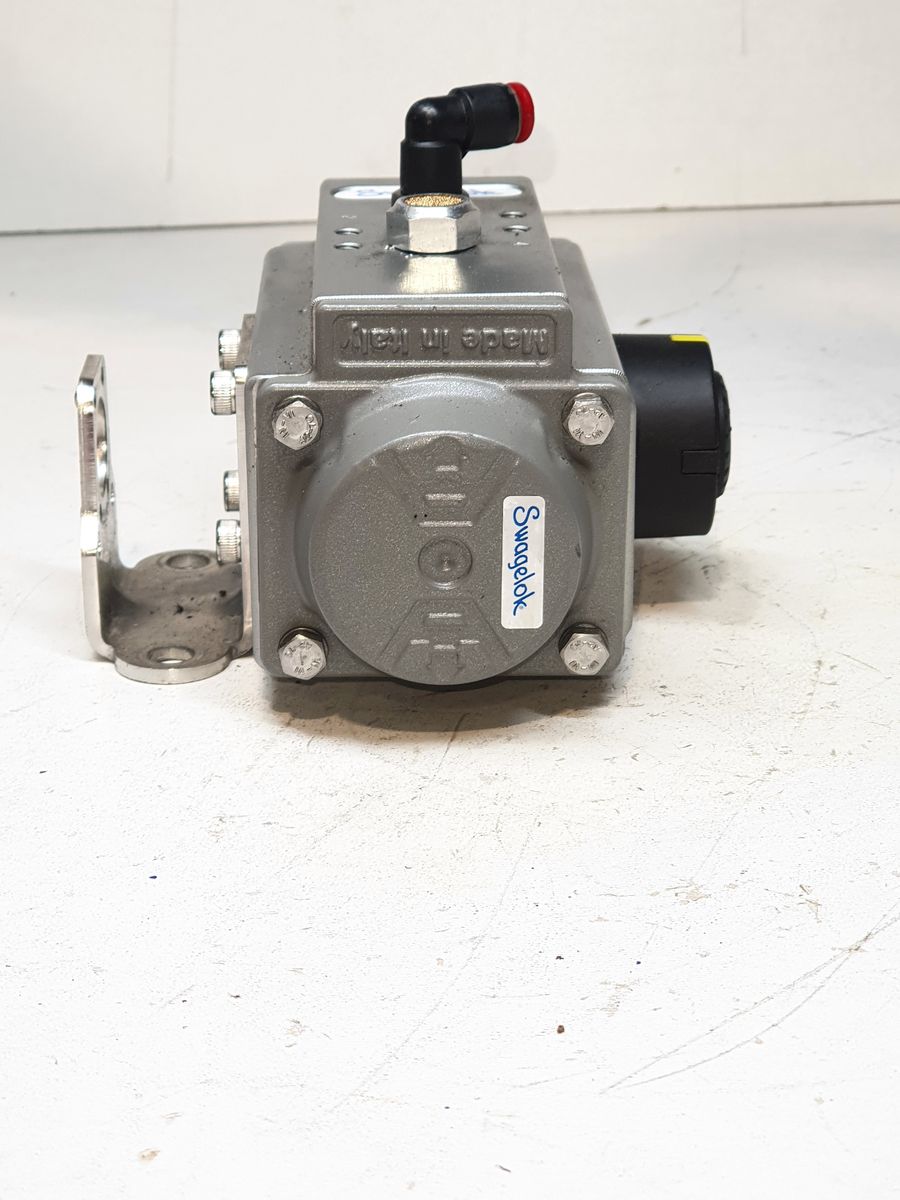

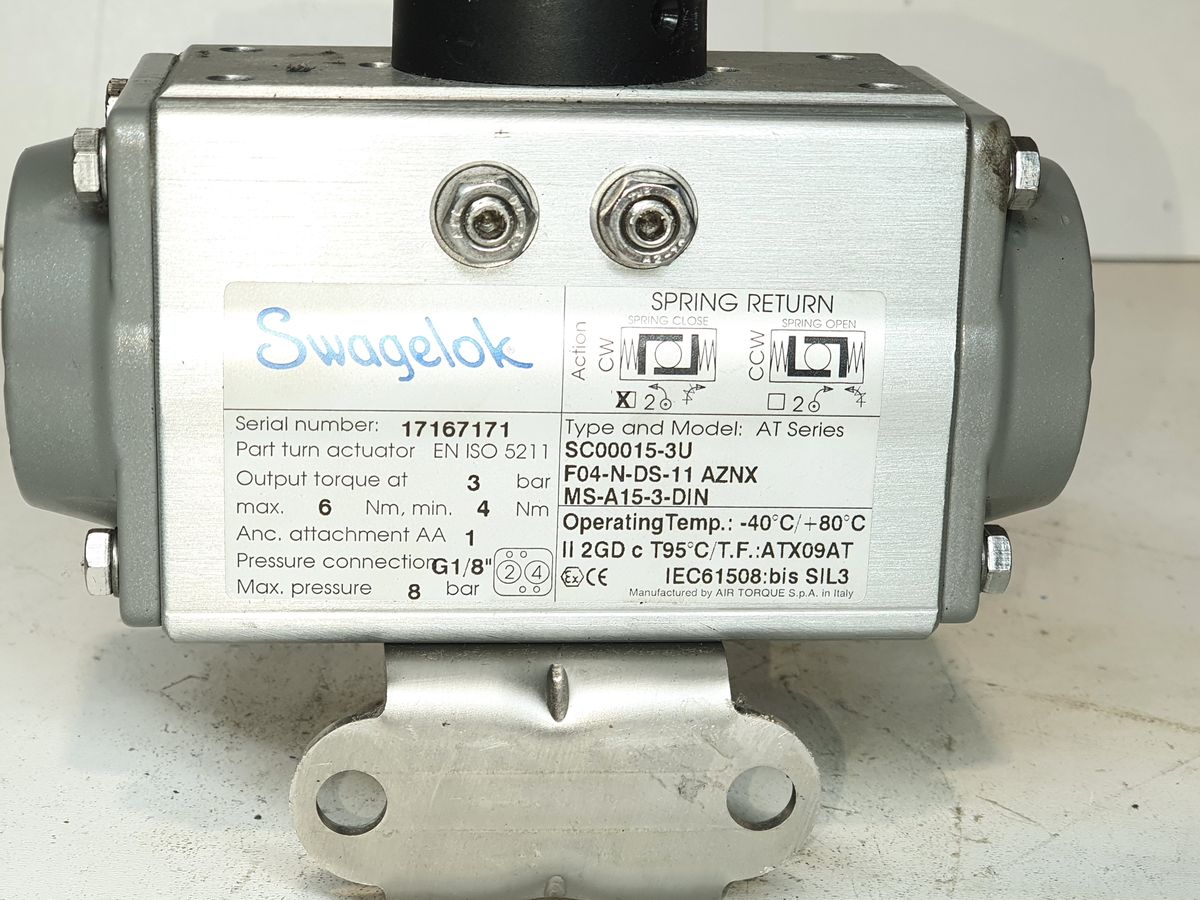

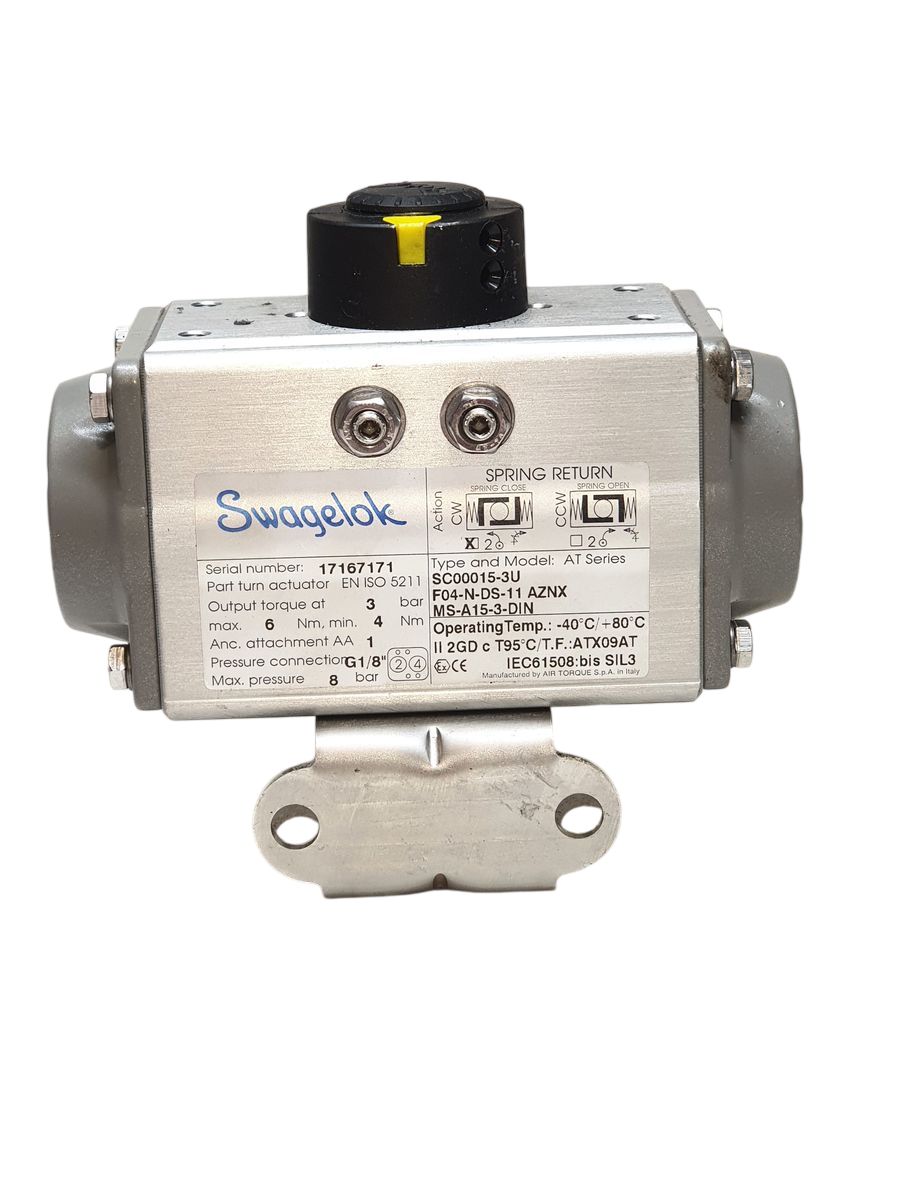

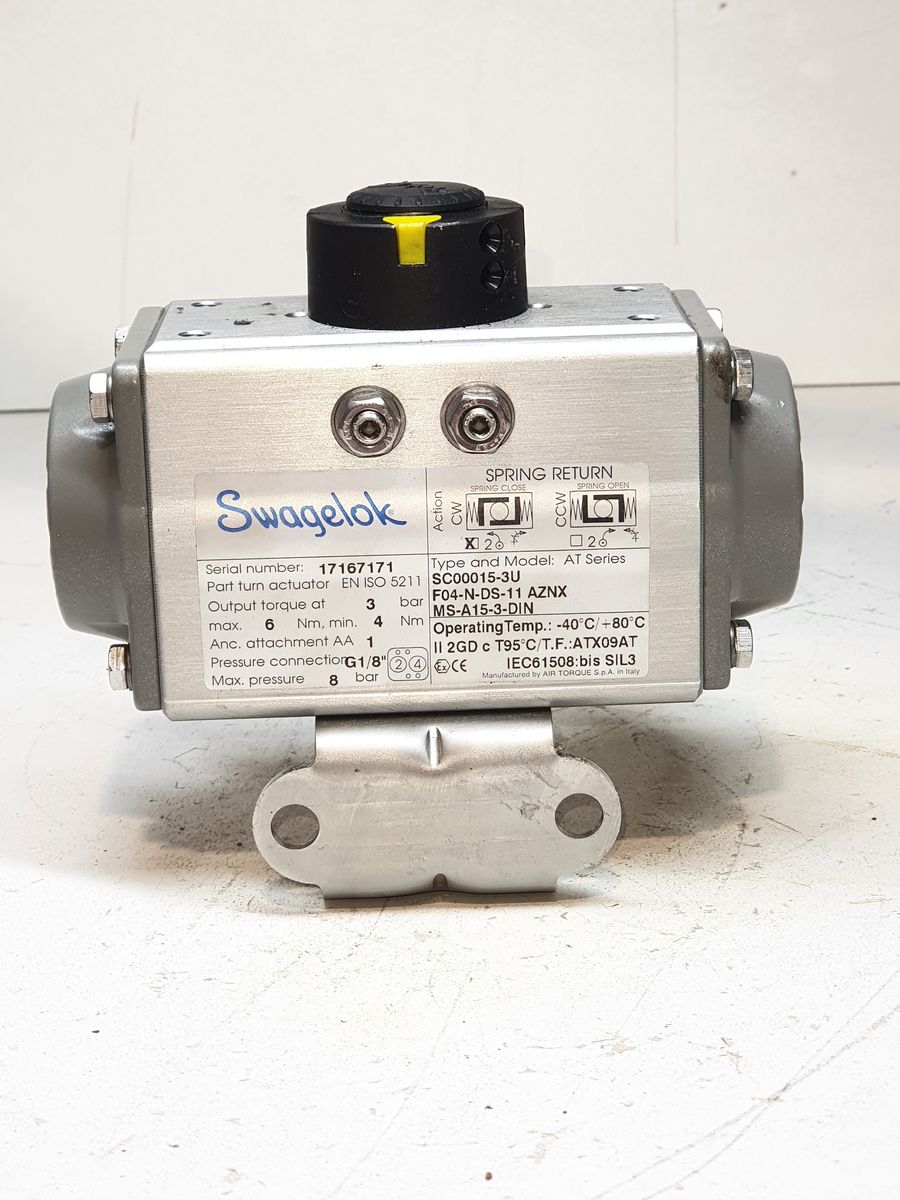

Swagelok SC00015-3U Pneumatic Actuator

Category	Parameter
Manufacturer	Air Torque S.p.A. (Italy)
Brand / Series	Swagelok AT Series
Type	Pneumatic part-turn actuator
Operation	Spring return (spring close / spring open)
Rotation Angle	90° (quarter turn)
Output Torque	Minimum: 4 NmMaximum: 6 Nm
Maximum Operating Pressure	8 bar
Air Connection	G 1/8"
Mounting Standard	EN ISO 5211
Ambient Temperature Range	−40 °C to +80 °C
ATEX Classification	II 2GD c T95°C / T.F. ATX09 AT
Safety Integrity Level	IEC 61508 – SIL 3
