Trykmåler

Swagelok PGI Industrial Pressure Gauge 0-4 bar 1/4 NPT Male 63mm

SKU: 6005

På lager

Brugt
Indhentet fra arbejdsmiljø

Pris på forespørgsel

Brugt
Indhentet fra arbejdsmiljø

Exkl. moms: €45,00 (1 tilgængelig)

Inkl. moms: €54,45

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Vigtigt: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garanti Perioder efter Tilstand

Ny 12 måneder

Renoveret 3 måneder

Brugt DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

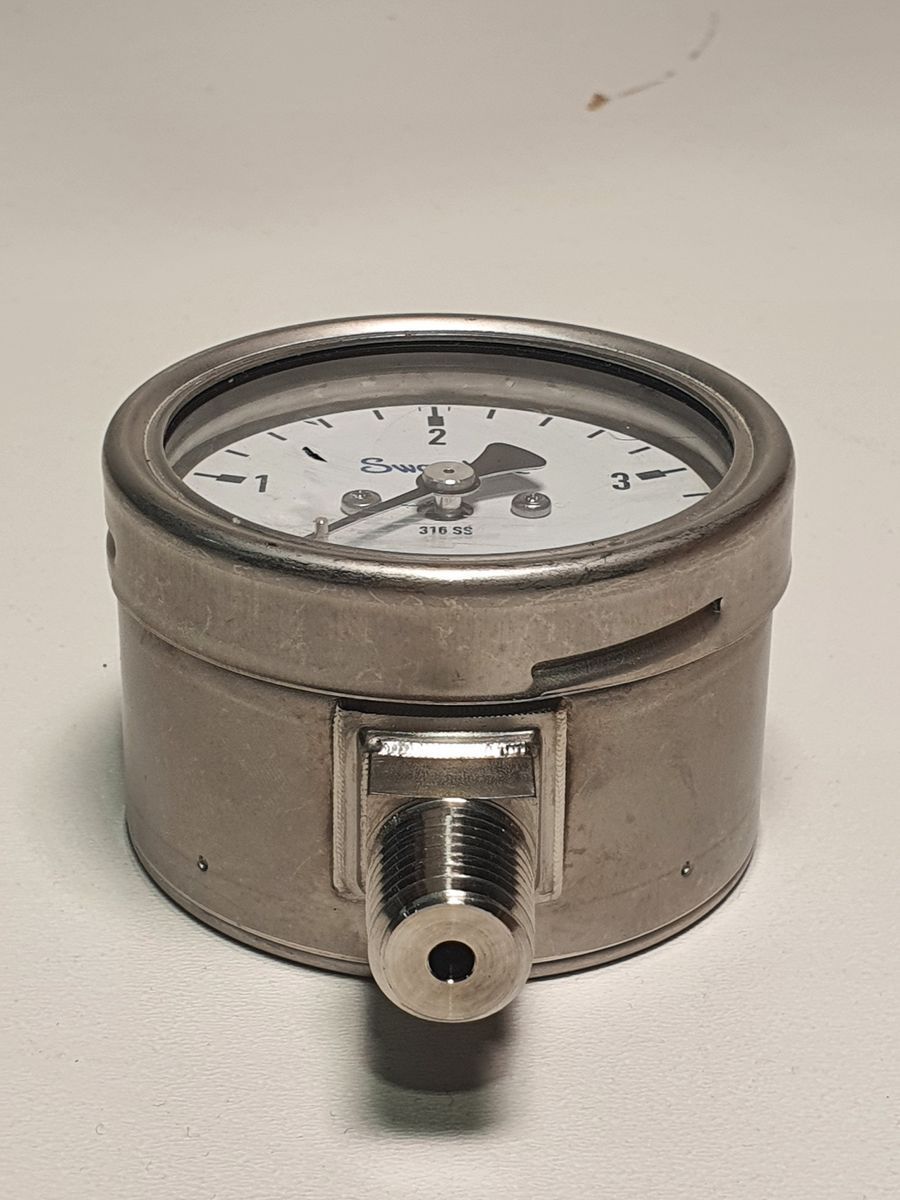

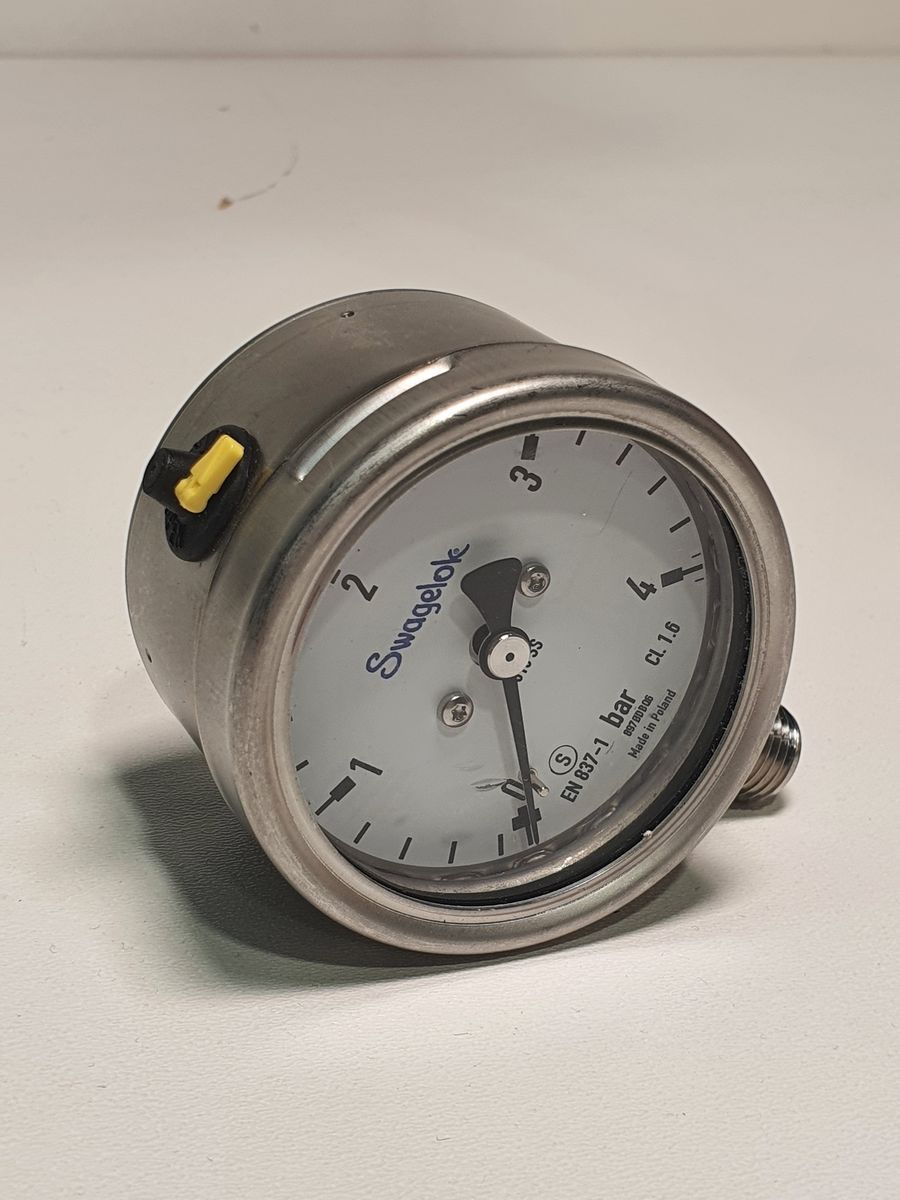

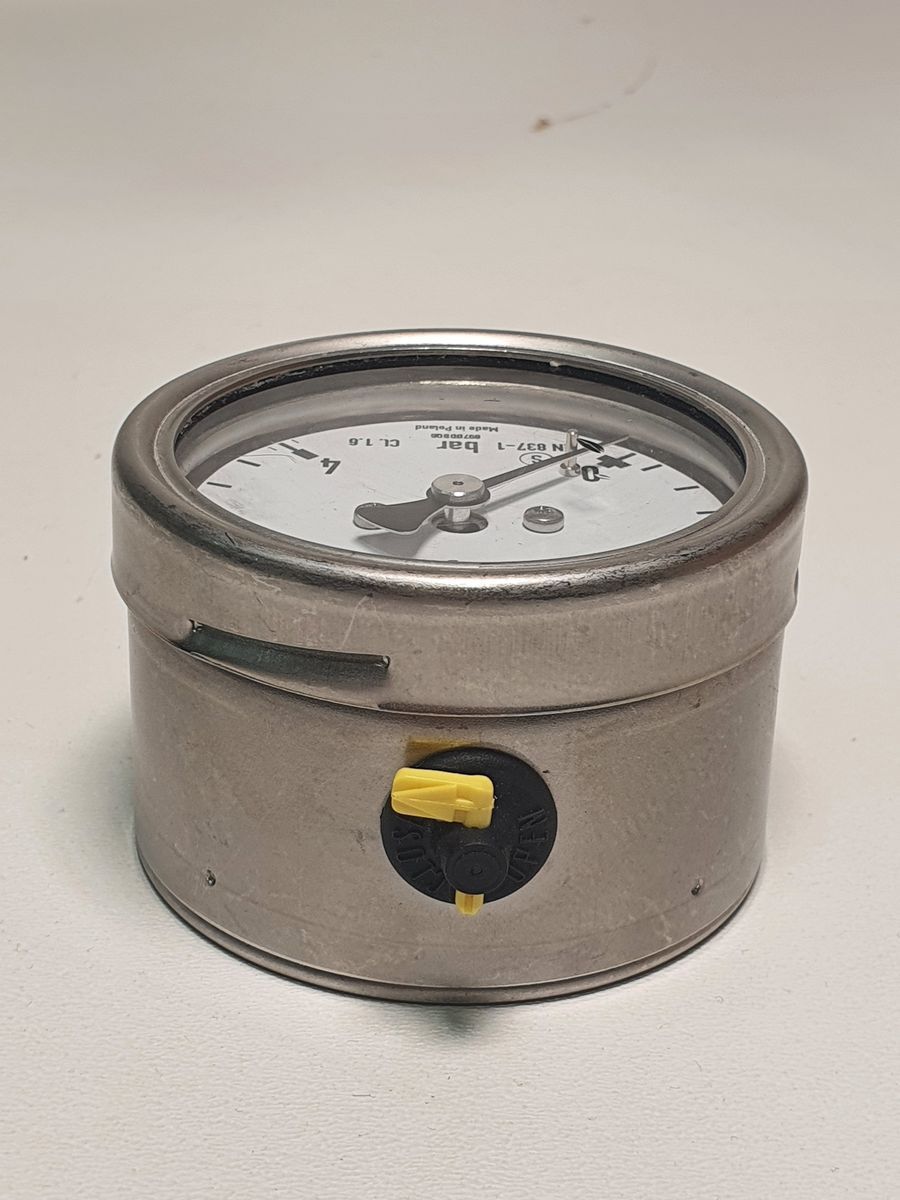

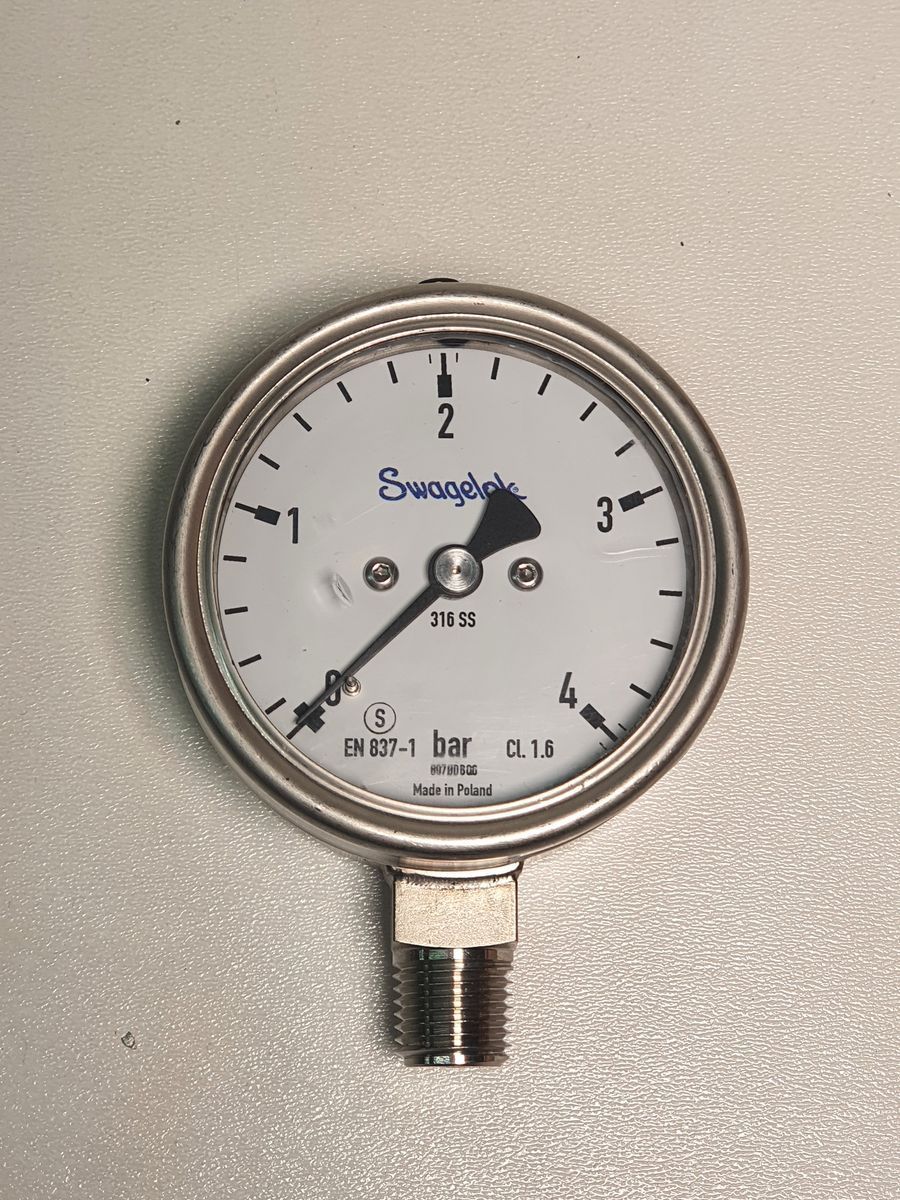

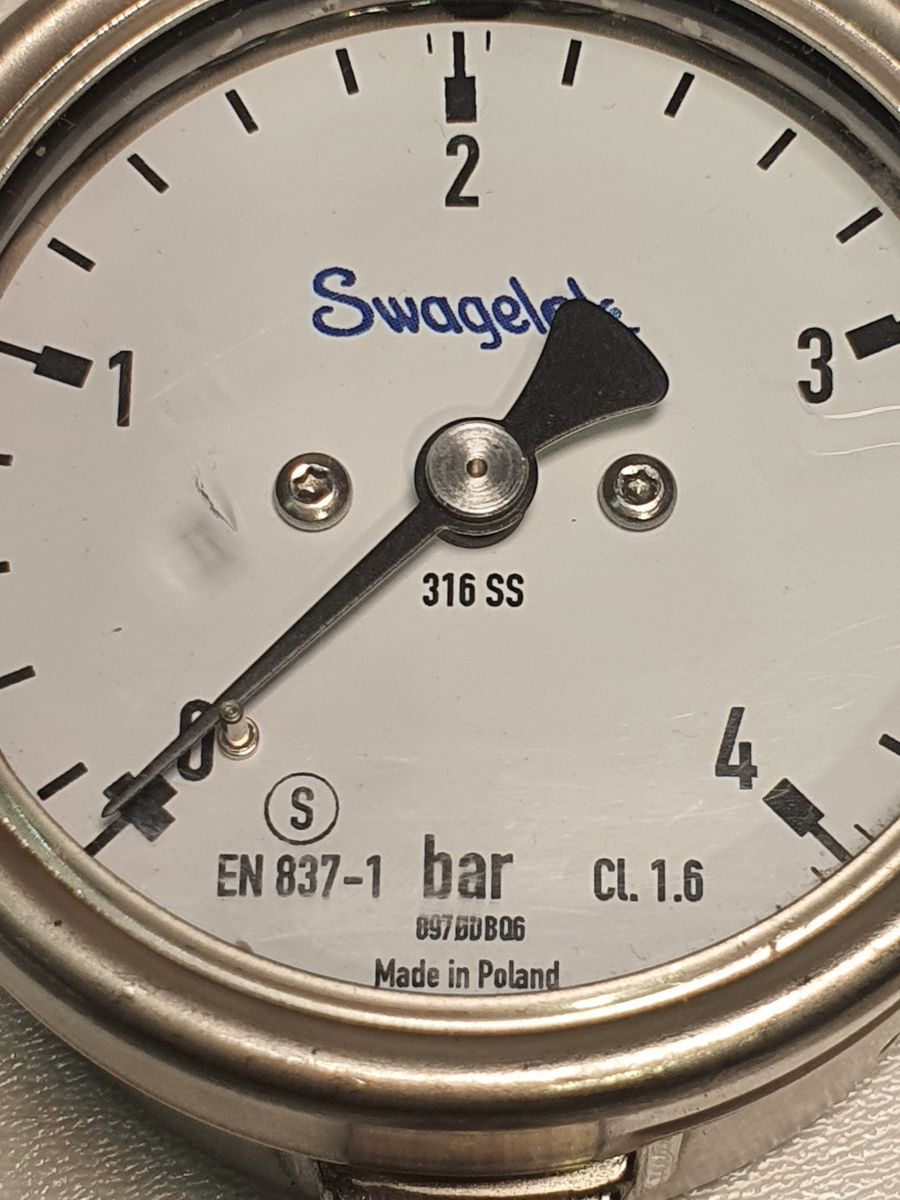

The Swagelok PGI-63C-PG100-LA0X

Category	Parameter
Standard Compliance	EN 837-1 (EU mechanical pressure gauge standard)
Dial Size	63 mm (2.5 in)
Pressure Range	0–4 bar (58 psi)
Case Material	Stainless steel
Wetted Materials	316 stainless steel
Window	Polycarbonate or tempered glass (variant-dependent)
Internals	Bourdon tube mechanism for stable, repeatable measurement
Accuracy	±1.6% of full scale (PGI 63 mm standard)
Temperature Range	Typically −20 °C to +60 °C (varies by fill/configuration)
Vibration Resistance	Optional liquid-filled case for enhanced stability (dry gauge usually LA0X code)
Process Connection	1/4" NPT (common on 63 mm PGI gauges)
Mounting	Lower mount (code “C” = center back or bottom connection depending on variant)
