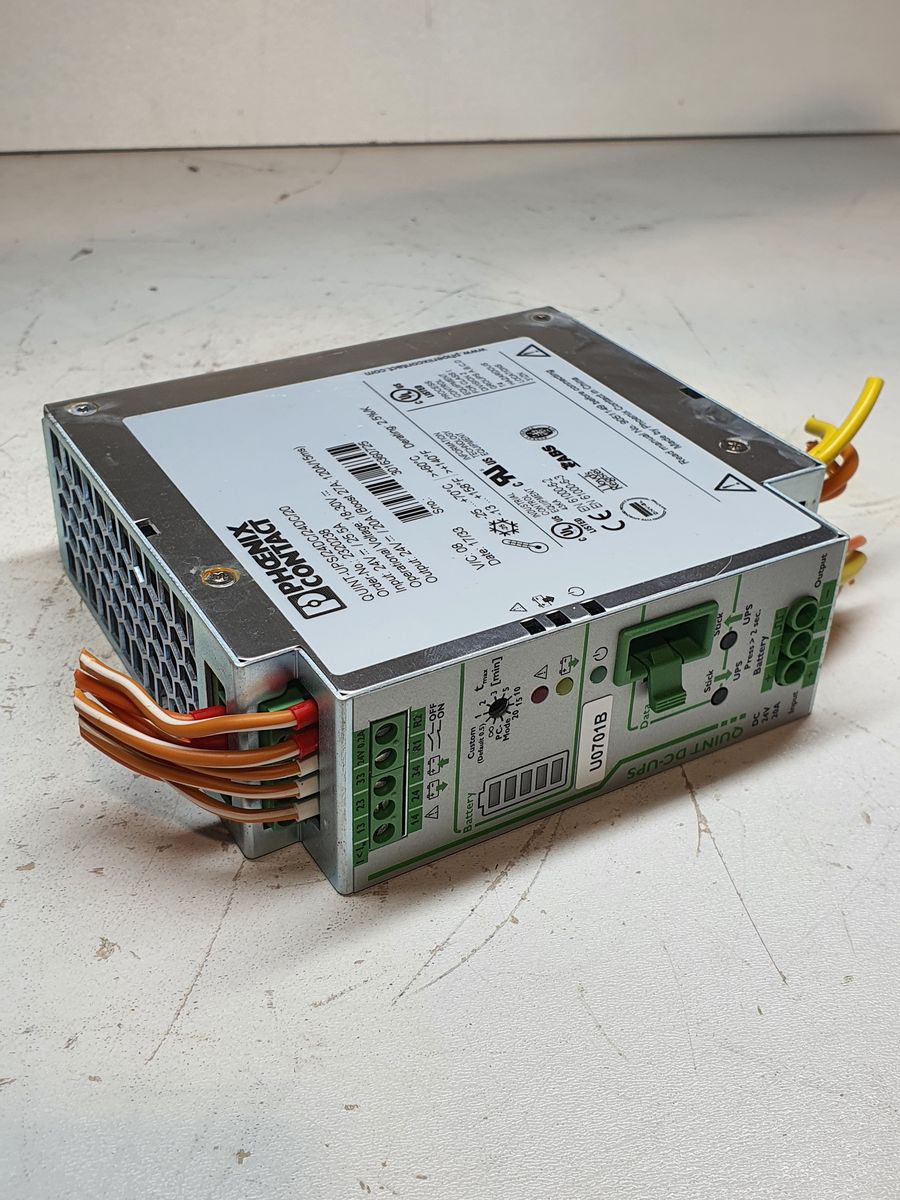

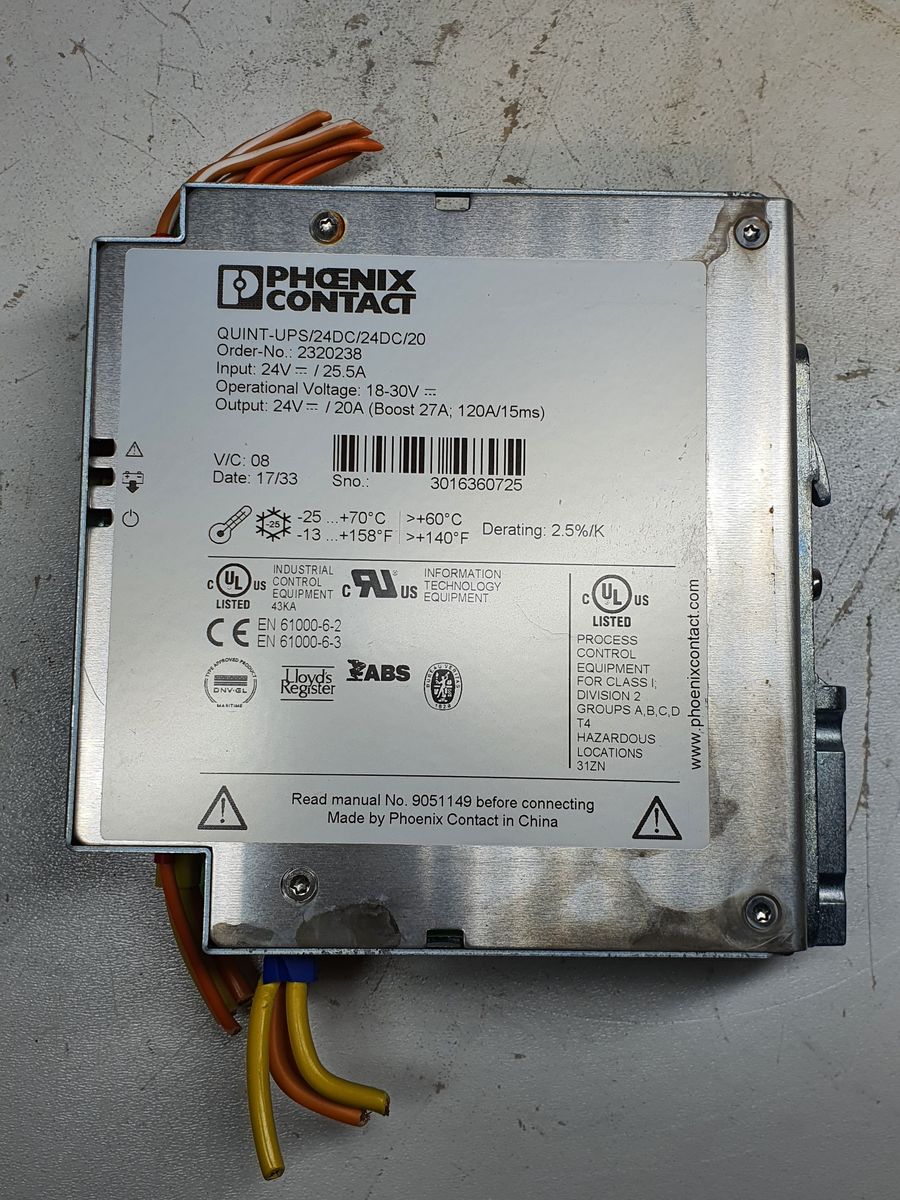

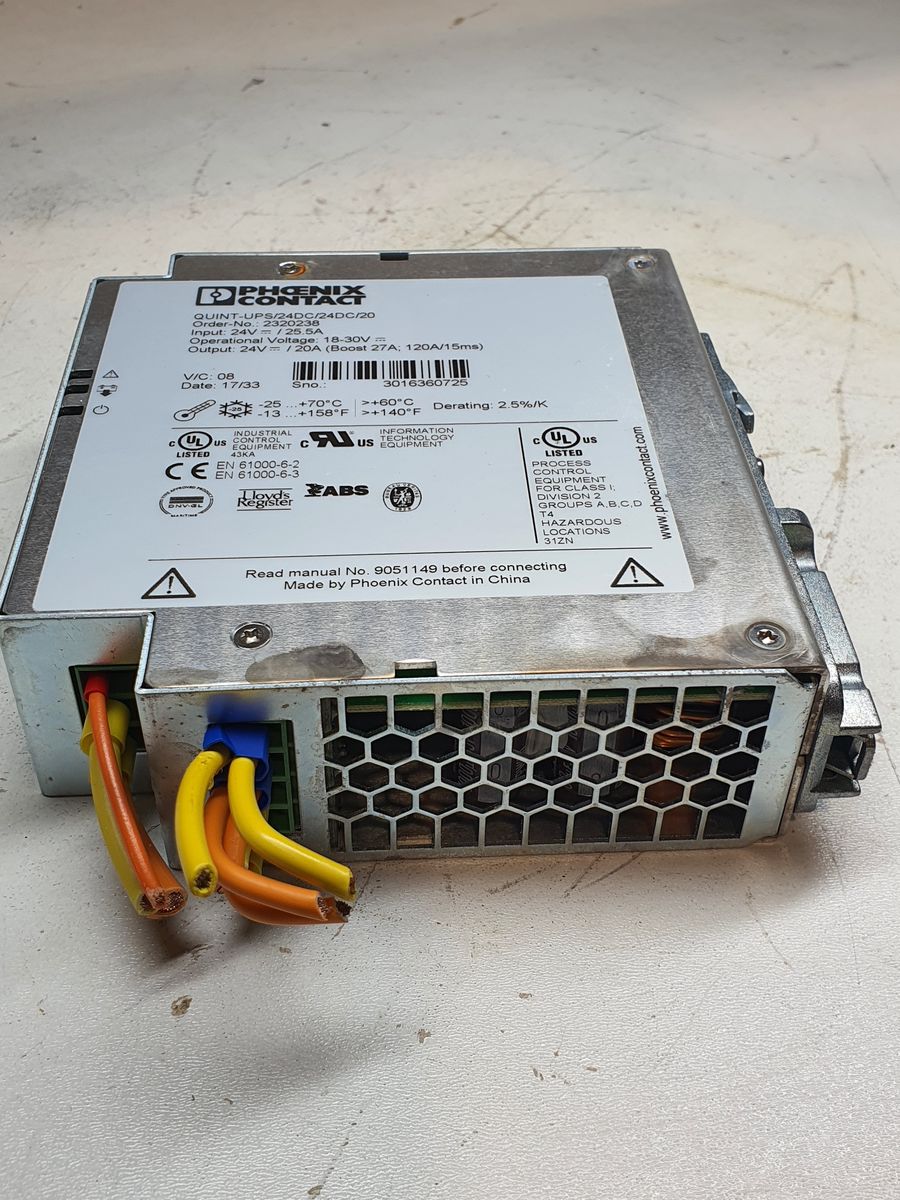

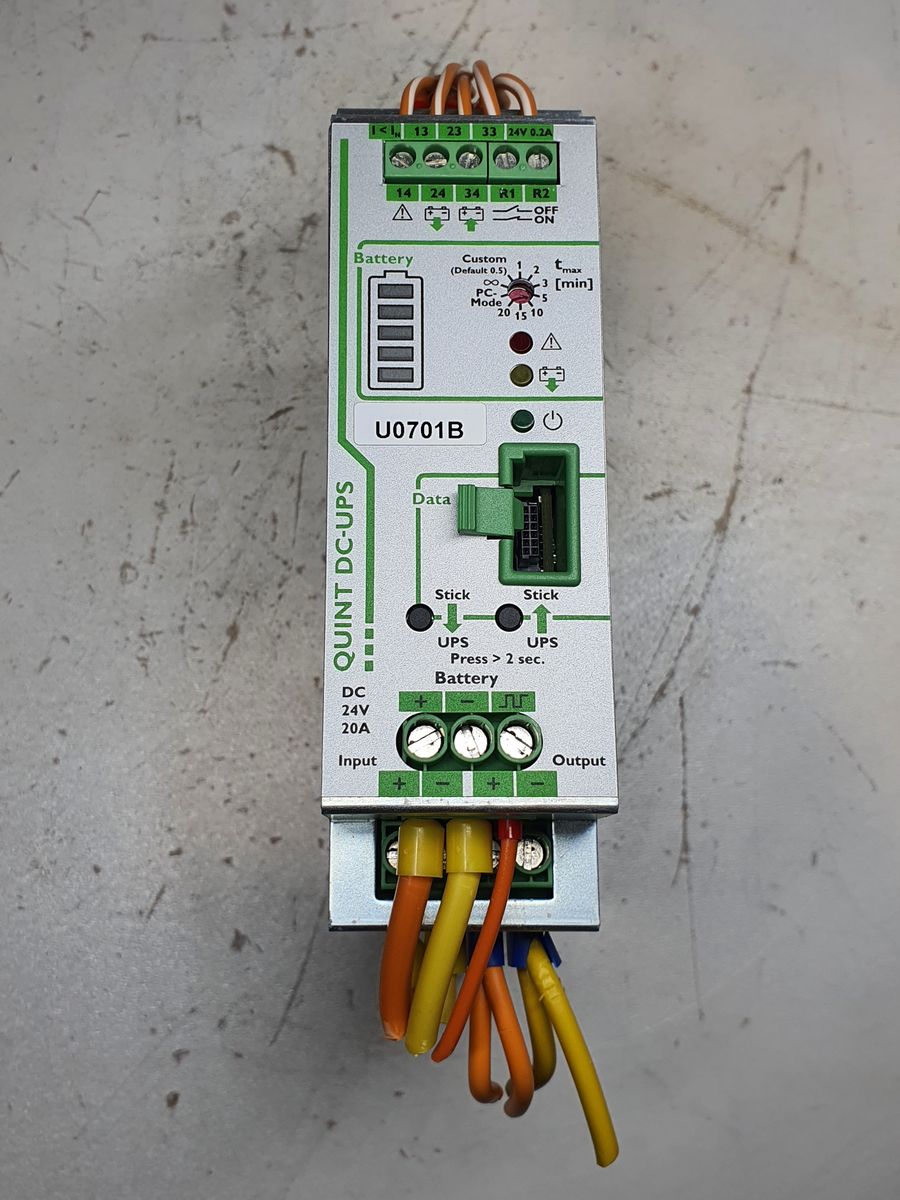

Phoenix Contact QUINT-UPS/24DC/24DC/20
SKU: 7019
På lager
Garantiinformation
Vigtigt: All warranties are our own warranties and do not cover factory or manufacturer warranties.
Phoenix Contact QUINT-UPS/24DC/24DC/20 - 3016360725
Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 24 V DC |
| Input Voltage Range | 18 … 30 V DC |
| Typical Country Mains Voltage | 24 V DC |
| Max. Tension Strength | 35 V DC (polarized) |
| Supply Voltage Type | DC |
| Internal Input Fuse | No |
| Inrush Current | ≤ 8 A (≤ 4 ms) |
| Polarity Protection | Yes |
| Fixed Activation Threshold | 22 V DC / 30 V DC |
| Dynamic Activation Threshold | > 1 V / 100 ms |
| Switch-On Time | Max. 3 s |
| Switch-On Time (Battery Mode) | 8 s |
| Input / Output Voltage Drop | 0.4 V DC |
| Output Voltage | 24 V DC (UOUT = UIN − 0.4 V DC) |
| Output Voltage Range | 18 … 30 V DC (UOUT = UIN − 0.4 V DC) |
| Output Voltage Range (Extended) | 18 … 32 V DC |
| Output Current (IN) | 20 A |
| Static Boost Current | 25 A |
| Dynamic Boost Current | 30 A (5 s) |
| Selective Fuse Breaking (ISFB) | 120 A (15 ms) |
| Current Consumption (IN) | 20.1 A |
| Current Consumption (Max) | 31.4 A |
| Current Consumption (No-Load) | 50 mA |
| Charging Current (Max) | 6.1 A |
| Power Consumption (PN) | 474 W |
| Power Consumption (Max) | 738 W |
| Power Consumption (No-Load) | 1.3 W |
| Power Consumption (Charging) | 145 W |
| Output Power (Nominal) | 480 W |
| Output Power (Static Boost) | 600 W |
| Output Power (Dynamic Boost) | 720 W (5 s) |
| Power Dissipation (No-Load) | 3 W |
| Power Dissipation (Nominal Load) | 10 W |
| Width | 40 mm |
| Height | 130 mm |
| Depth | 132 mm |

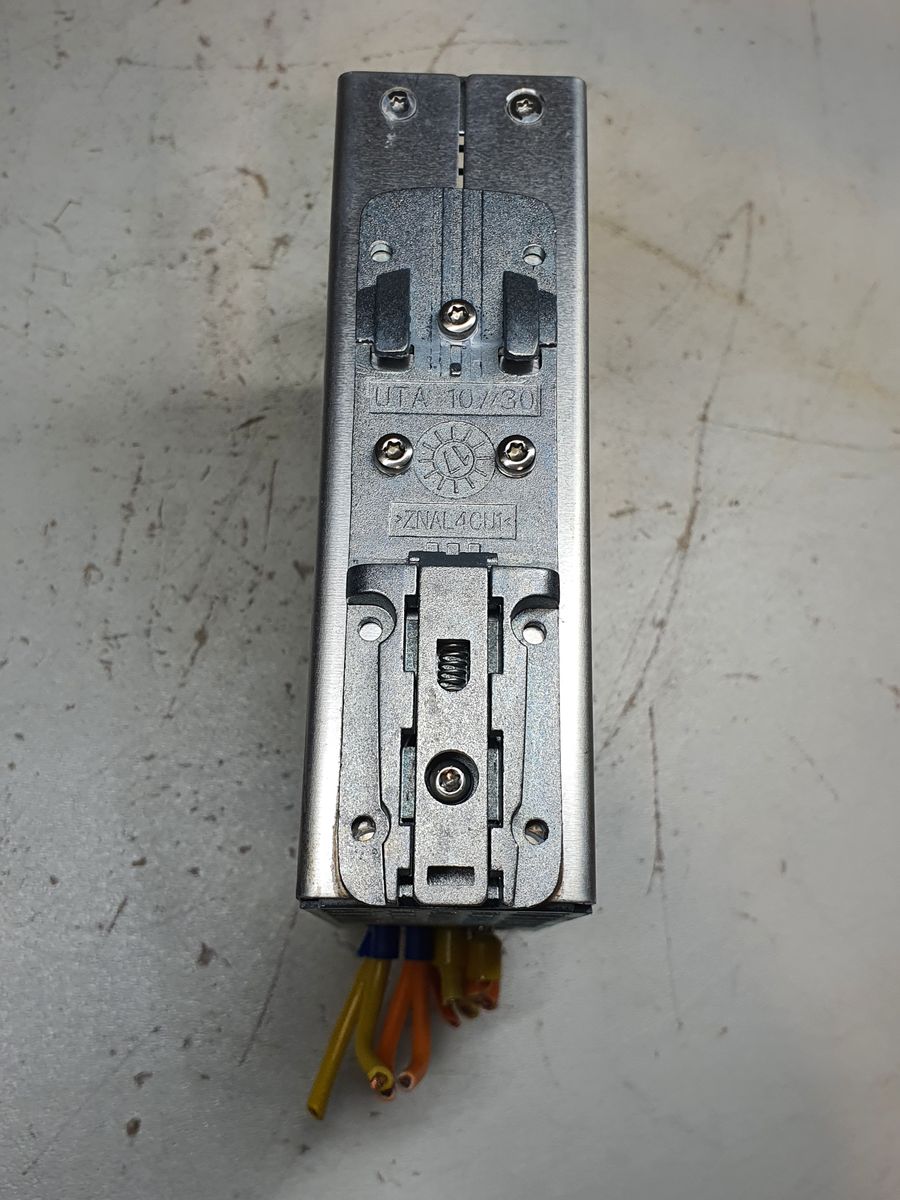

| Device Depth (Rail Mounting) | 125 mm |
×
![]()
