Parker Balston 75-83-220-M312
SKU: 7041
På lager
Garantiinformation
Vigtigt: All warranties are our own warranties and do not cover factory or manufacturer warranties.

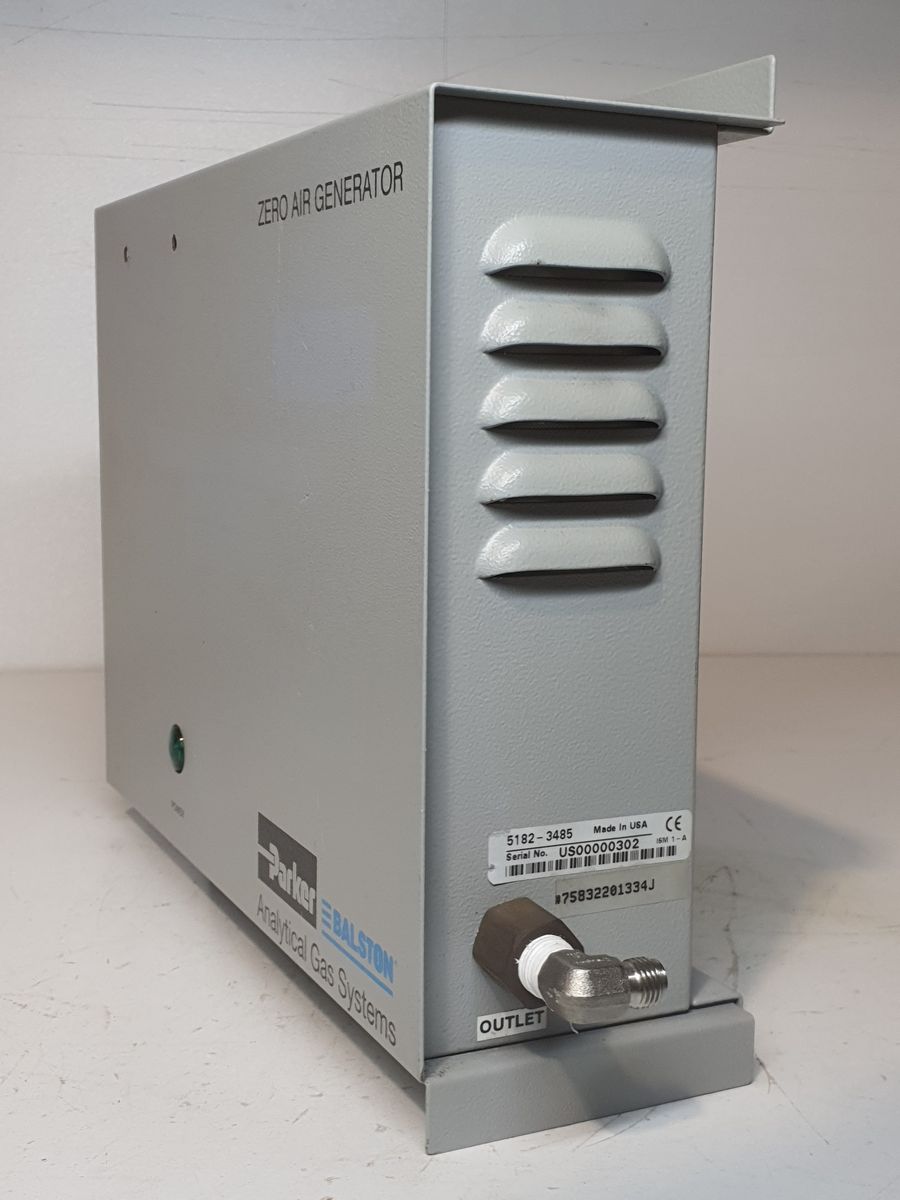

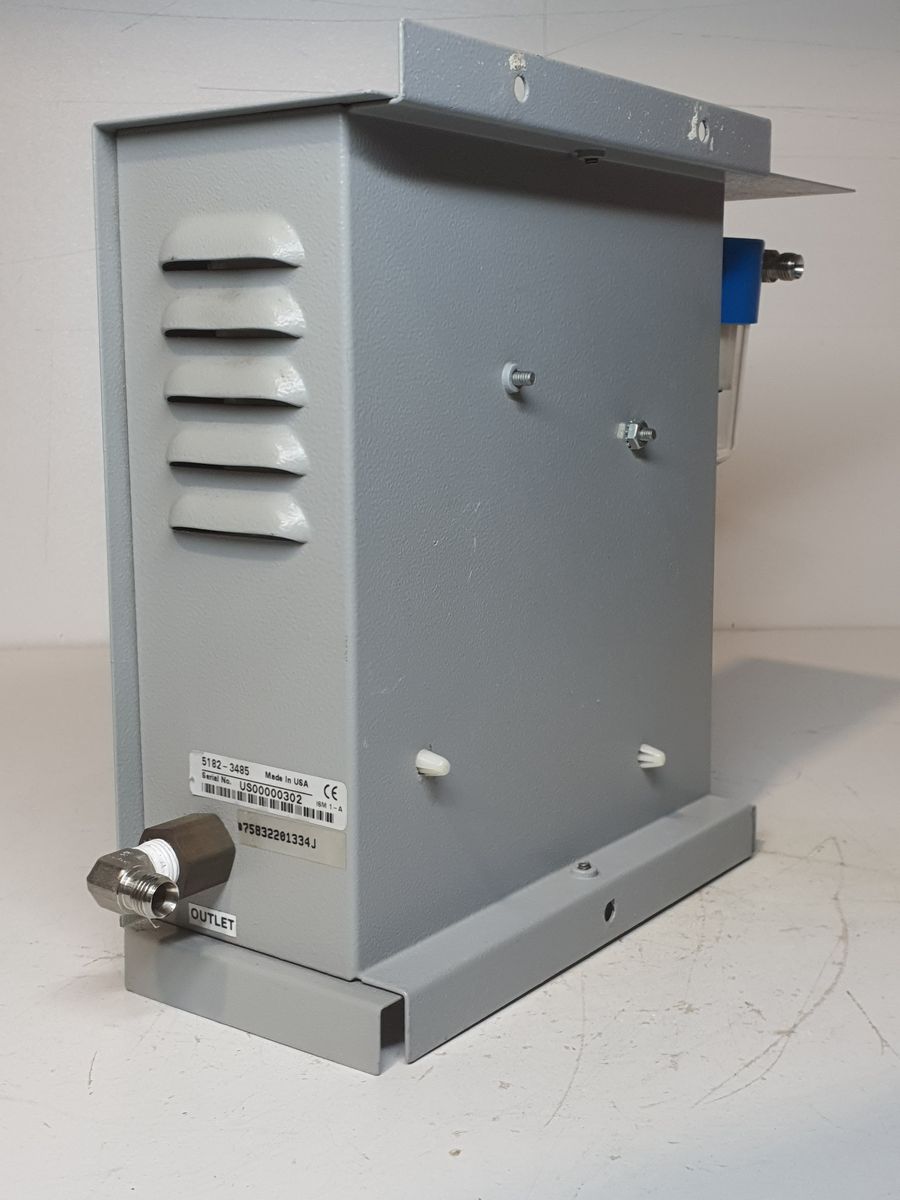

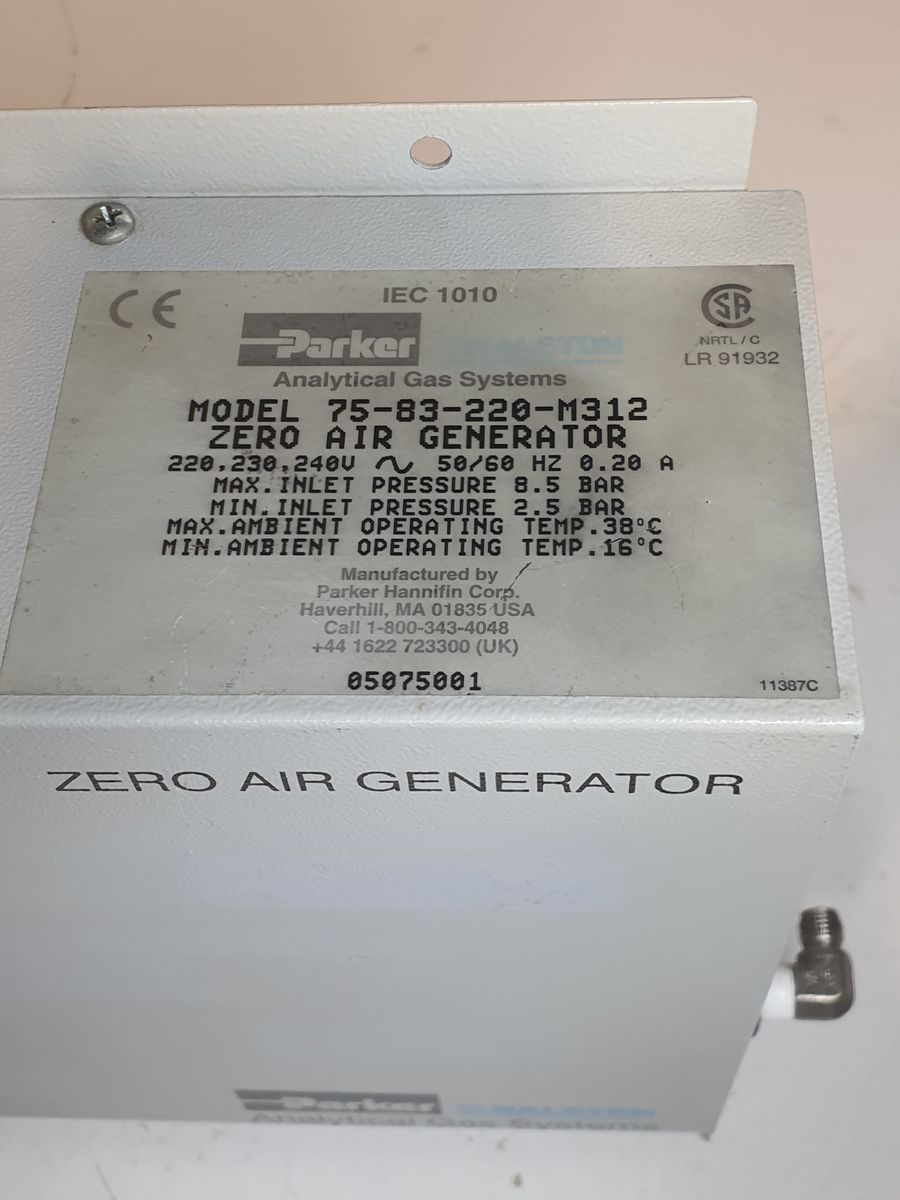

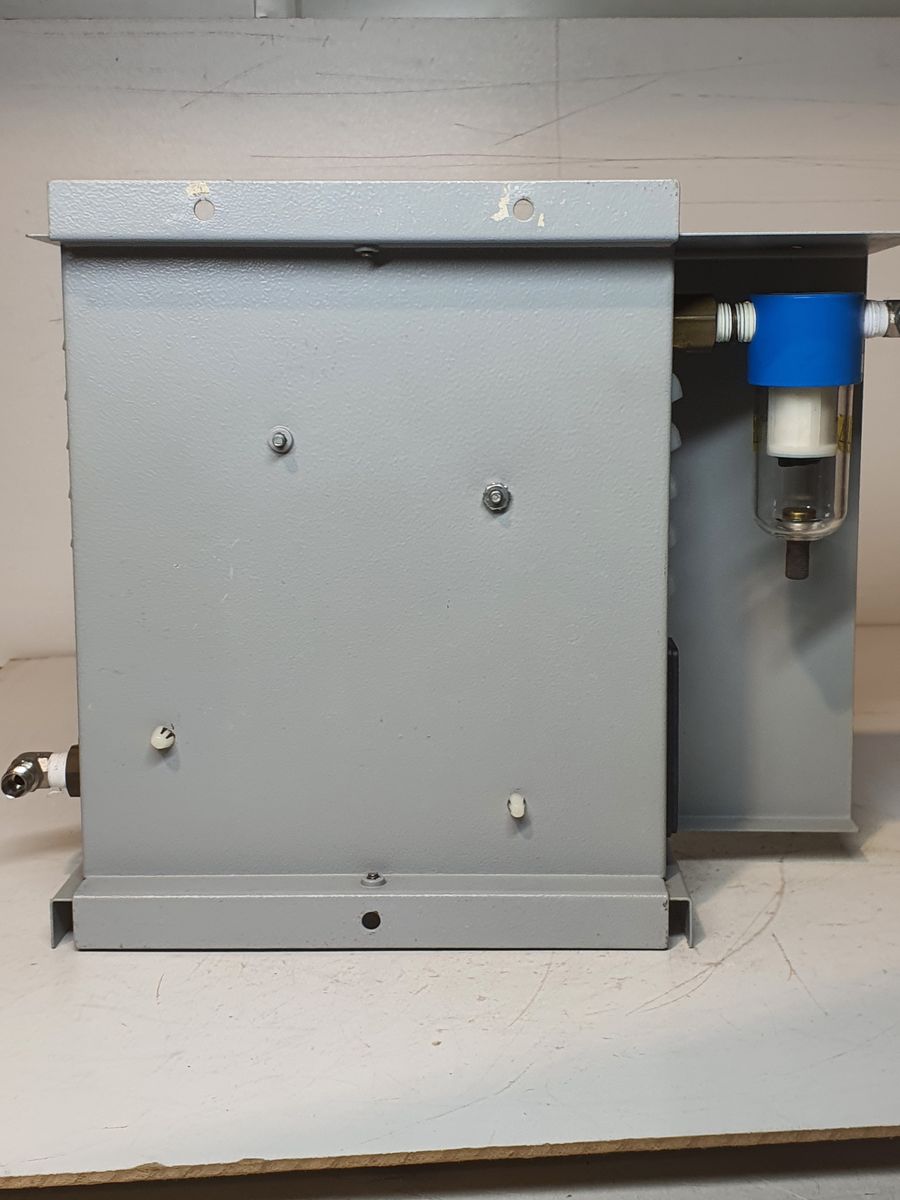

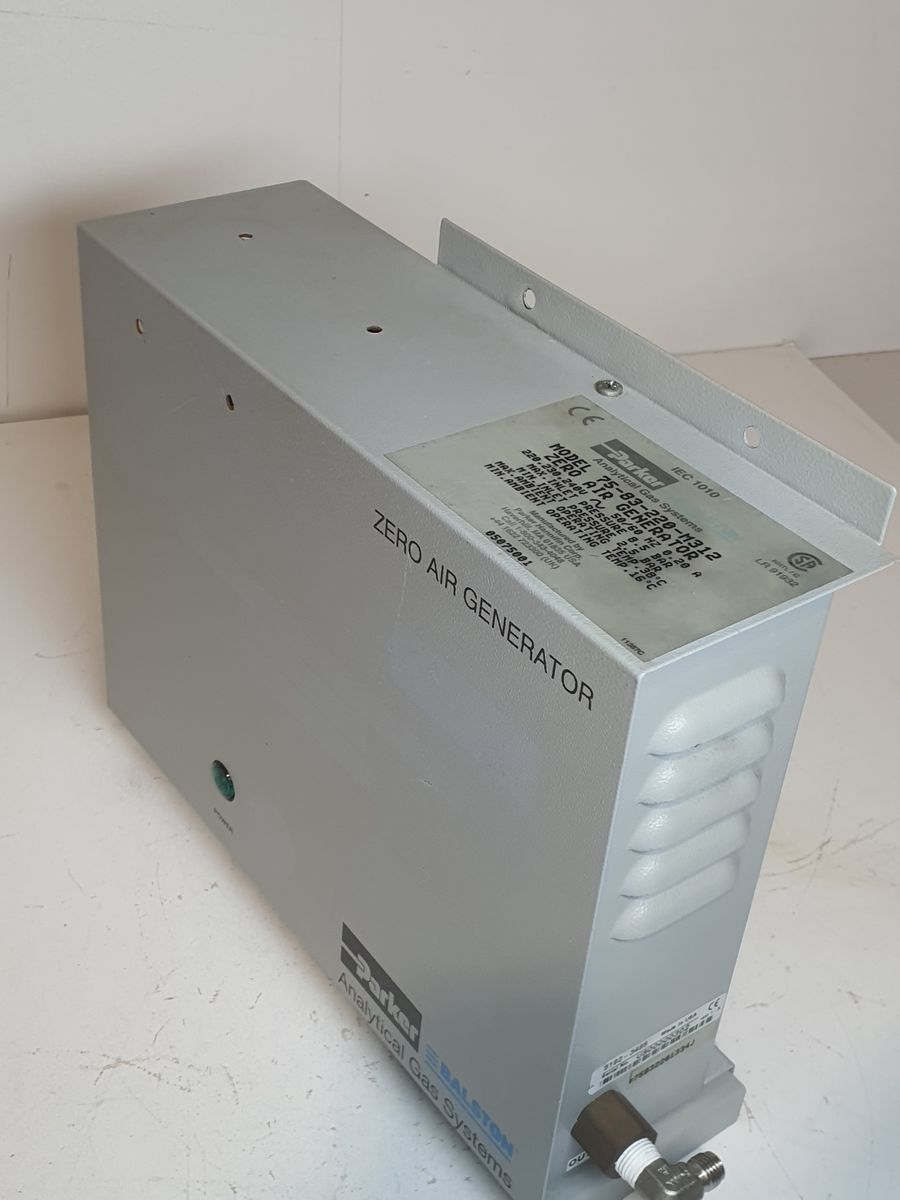

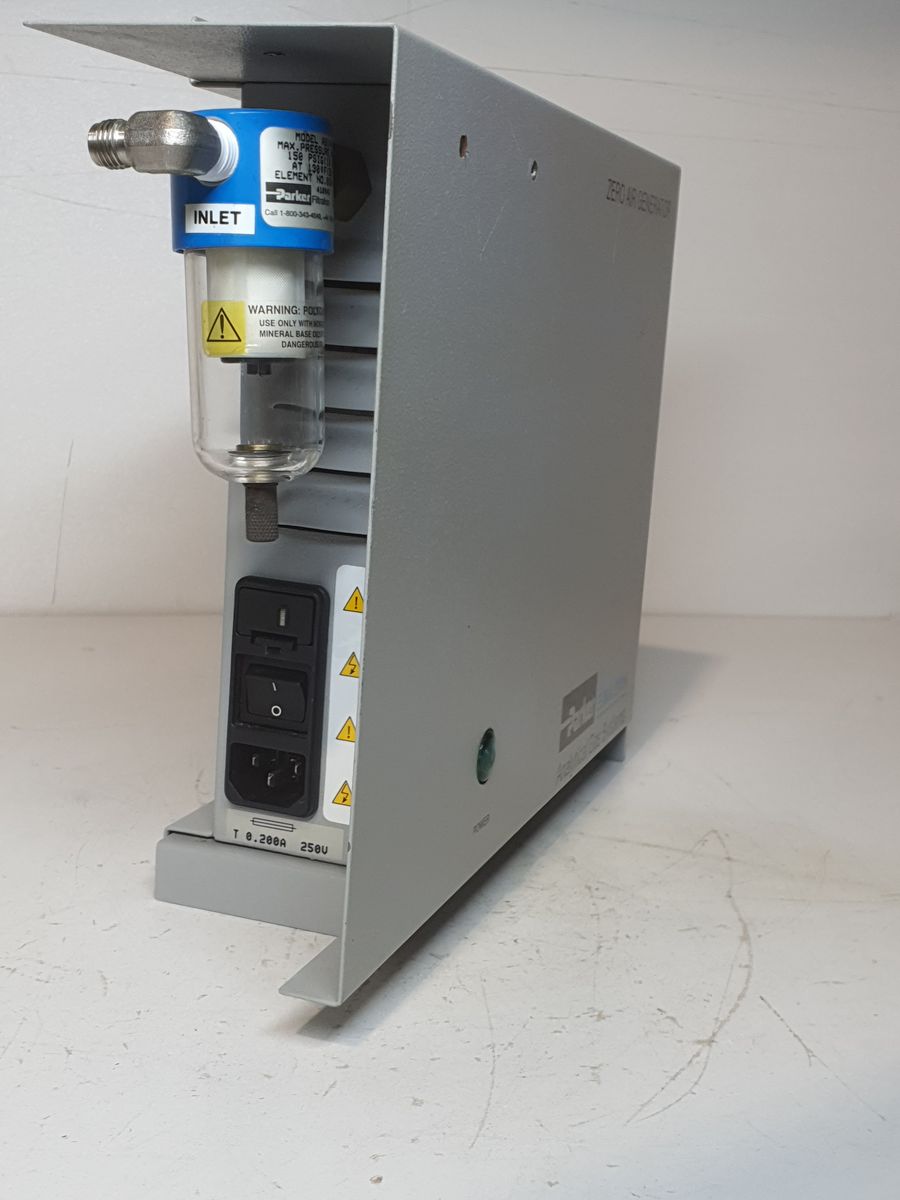

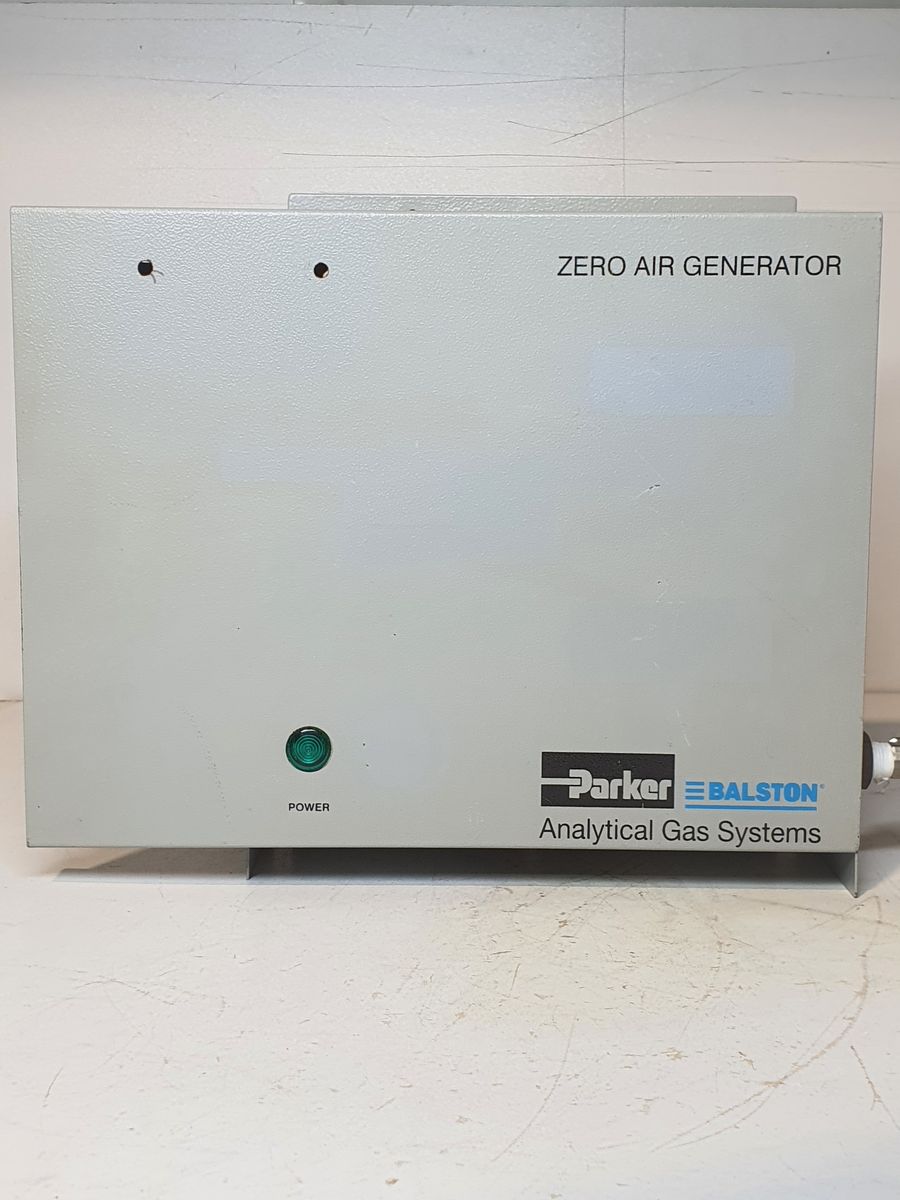

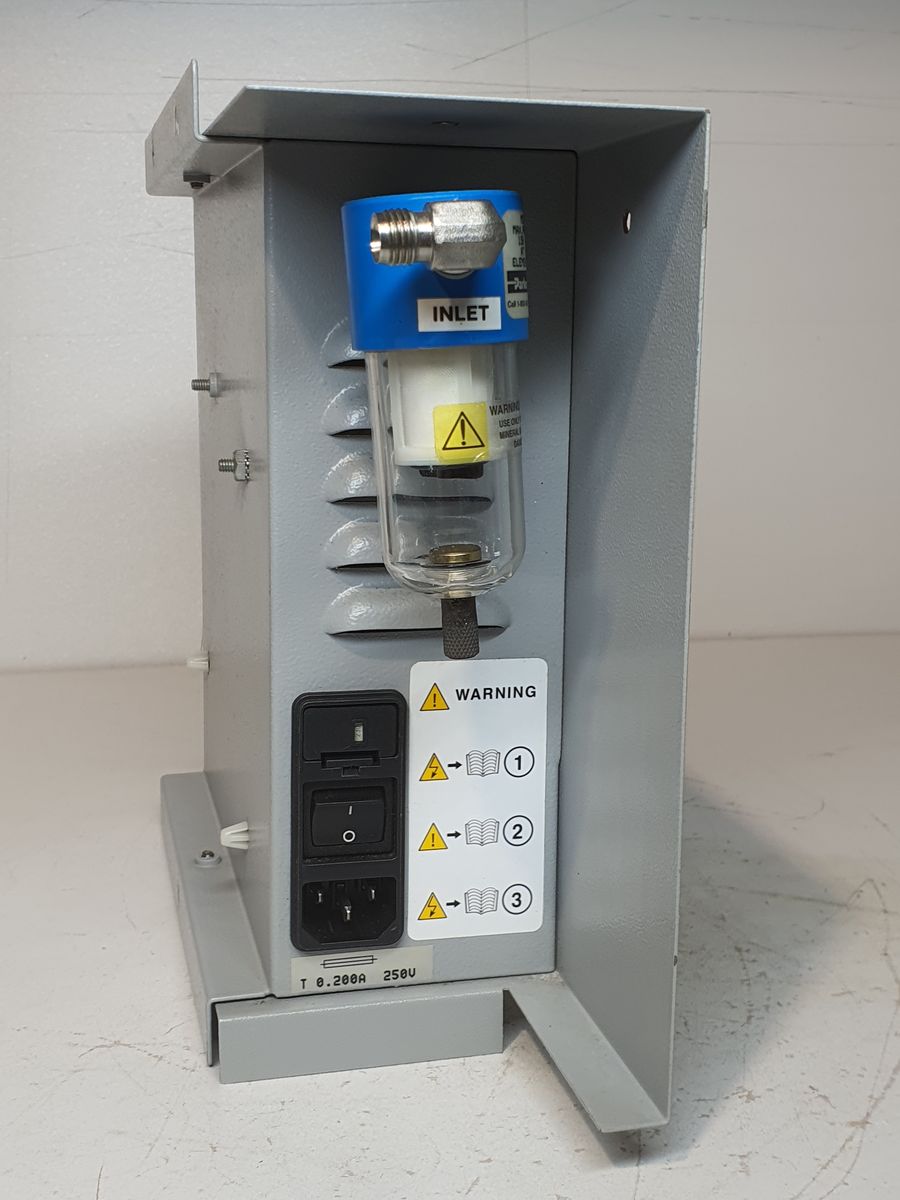

Parker Balston Analytical Gas System - Zero Air Generator
Model 75-83-220-M312
The Parker Balston 75-83 Zero Air Generator is an engineered system which will replace inconvenient high pressure gas cylinders as a source of hydrocarbon-free air. The 75-83 will purify on-site compressed air to a total hydrocarbon concentration of less than 0.1 ppm (measured as methane). The Zero Air Generator may be used to generate fuel air for Flame Ionization Detectors (FID’s) or for a zero reference for any instruments which measure hydrocarbon concentration. The 75-83 is capable of producing up to 1000 cc/min of zero grade air and will serve up to three FID's.
Specifications:
| Category | Specification |
|---|---|
| Model Range | 75–83 |
| CSA Certification Standard | CAN/CSA C22.2 No. 61010-1-12 |
| IEC Certification Standard | IEC 61010-1 / EN61010-1 |
| IEC 61010 Installation Category | Category II |
| IEC 61010 Pollution Degree | Degree 2 |
| UL Certification Standard | UL 61010-1 (3rd Edition) |
| EMC Standards | CISPR 11 / EN 55011 / EN 50082-1 |
| Maximum Flow Rate | 1000 cc/min |
| Total Hydrocarbon Concentration | < 0.1 ppm |
| Total Carbon Monoxide (CO) Concentration | < 1.0 ppm |
| Outlet Air Temperature | Ambient +20°F (+11°C) |
| Min / Max Ambient Temperature | 16°C – 38°C |
| Minimum / Maximum Inlet Pressure | 40 – 125 psig (2.7 – 8.5 barg) |
| Maximum Relative Humidity | 80% up to 31°C; 50% at 40°C |
| Maximum Altitude | 2000 m |
| Maximum Inlet Hydrocarbon Content | 100 ppm |
| Pressure Drop at Max Flow Rate | < 5 psid (0.3 bar) |
| Startup Time | 45 minutes |
| Electrical Requirements | 100 VAC / 120 VAC / 230 VAC, 50–60 Hz, 0.5 A / 0.2 A |
| Physical Dimensions | 12 in (W) × 10 in (H) × 3 in (D) 30 cm × 25 cm × 8 cm |
| Shipping Weight | 7 lb (3 kg) |
| Fuses (100 V / 120 V Models) | 5 × 22 mm, Type T, 250 V, 0.5 A |
| Fuses (220 V Model) | 5 × 22 mm, Type T, 250 V, 0.315 A |
×
![]()
