Kammer Ventile 80047

SKU: 7044

På lager

Refurbished

Pris på forespørgsel

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Vigtigt: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garanti Perioder efter Tilstand

Ny 12 måneder

Renoveret 6 måneder

Brugt 3 måneder

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

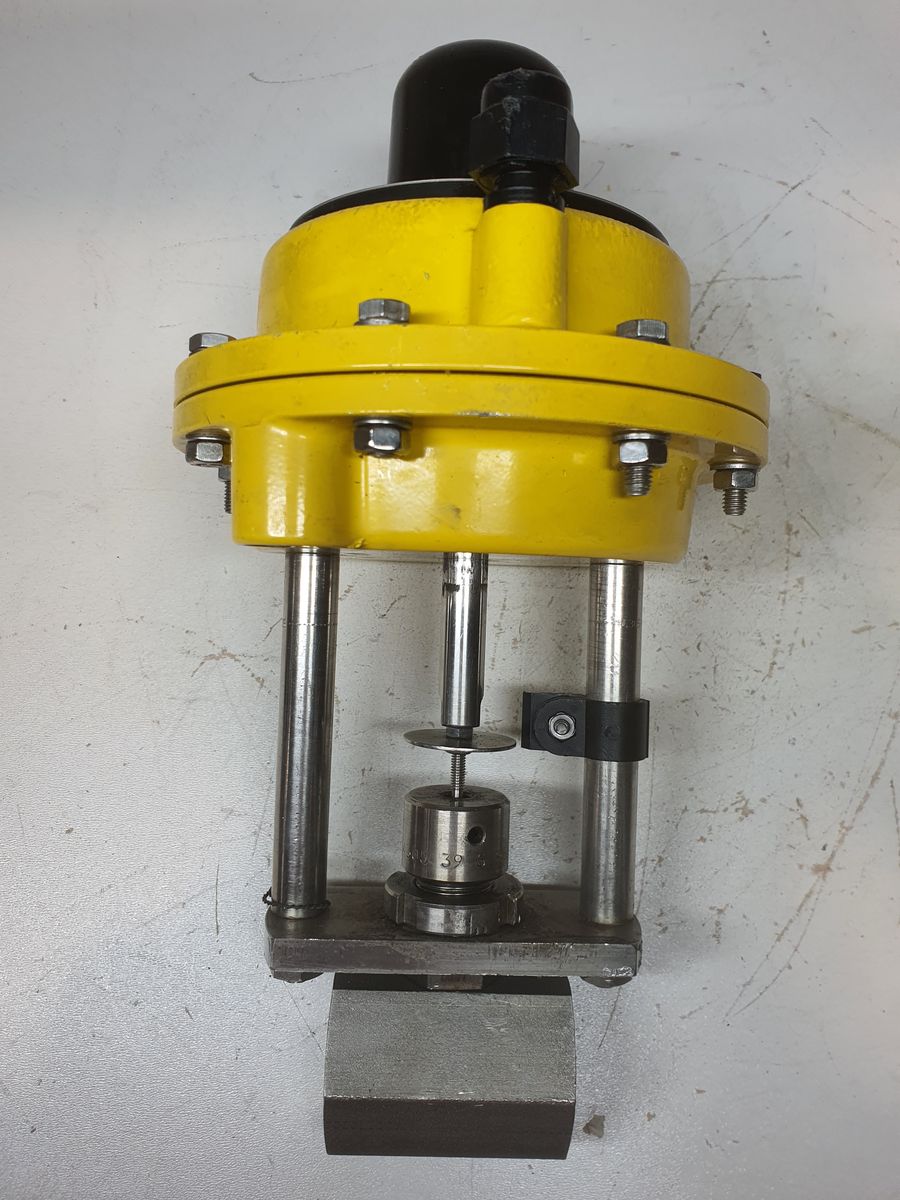

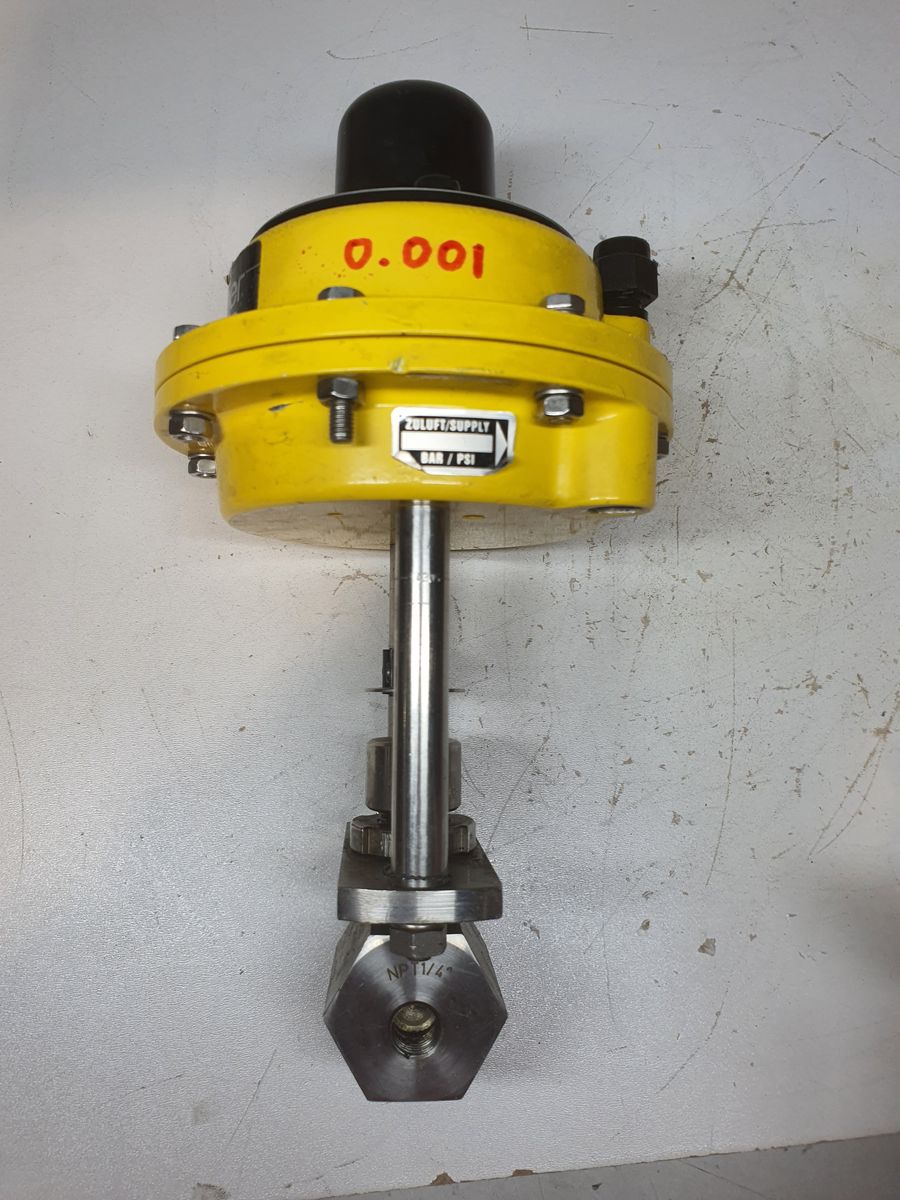

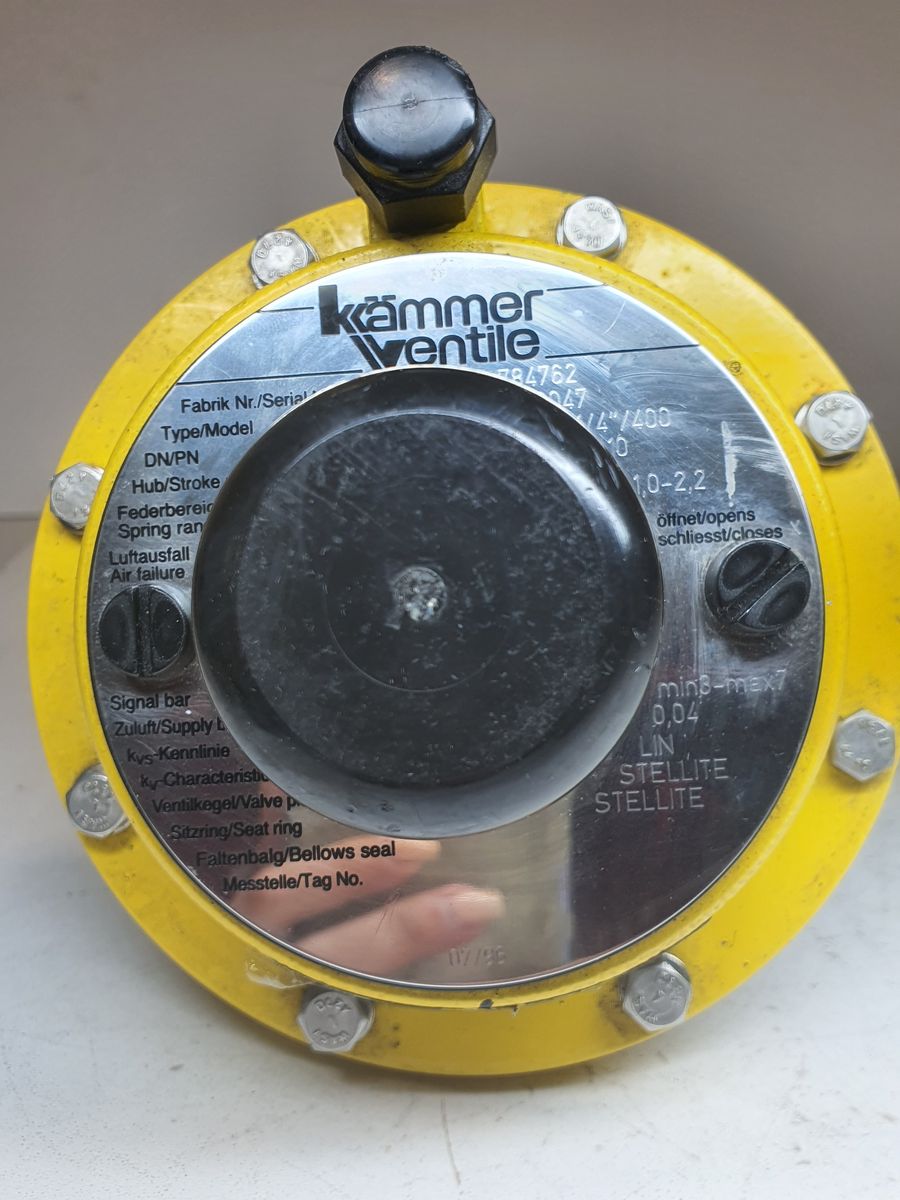

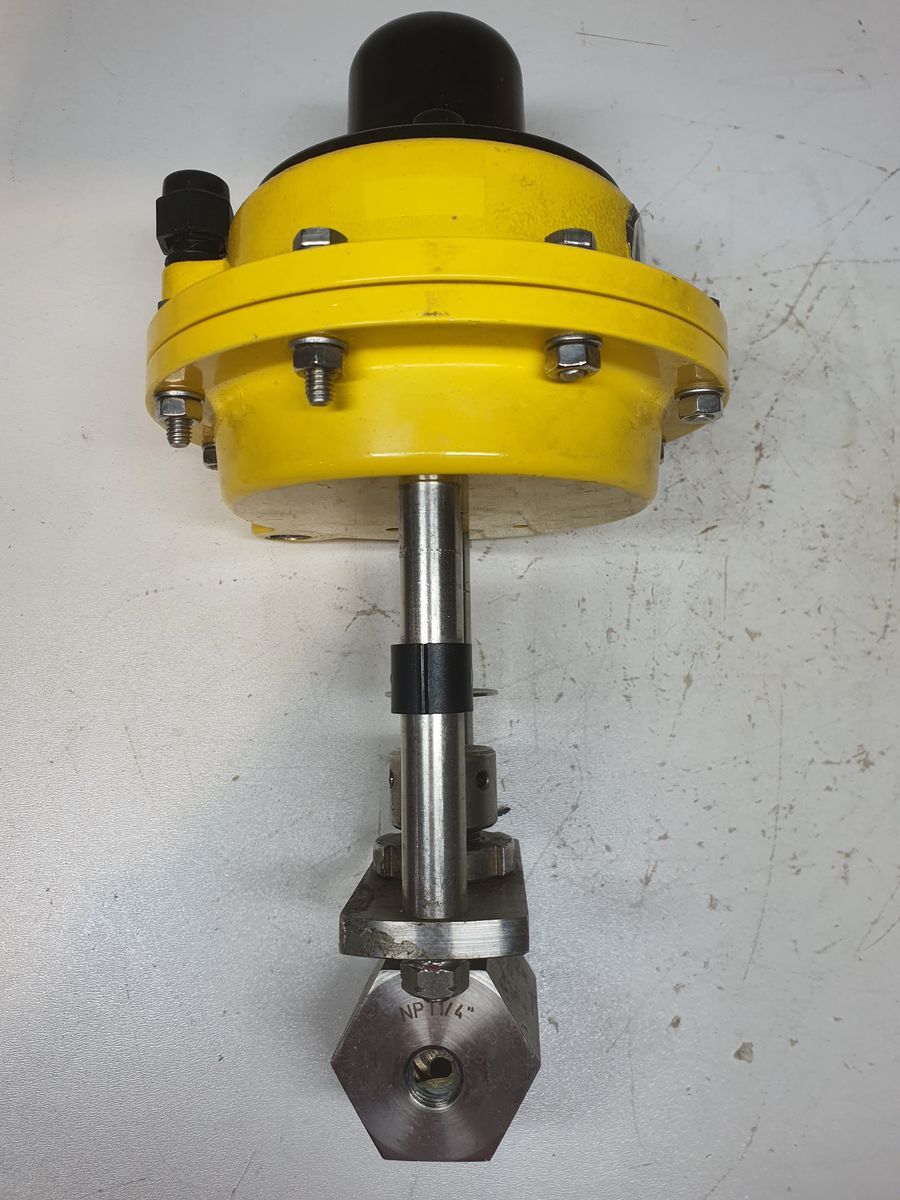

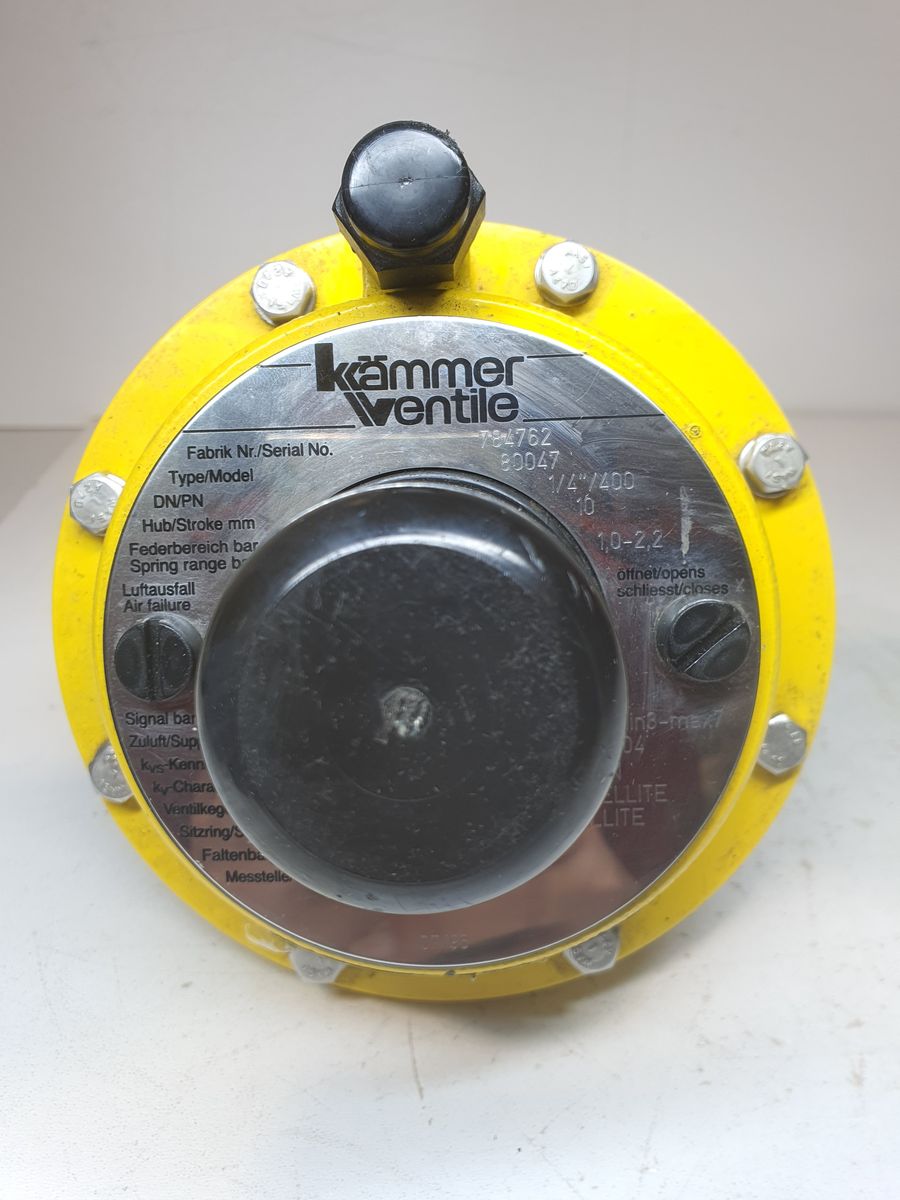

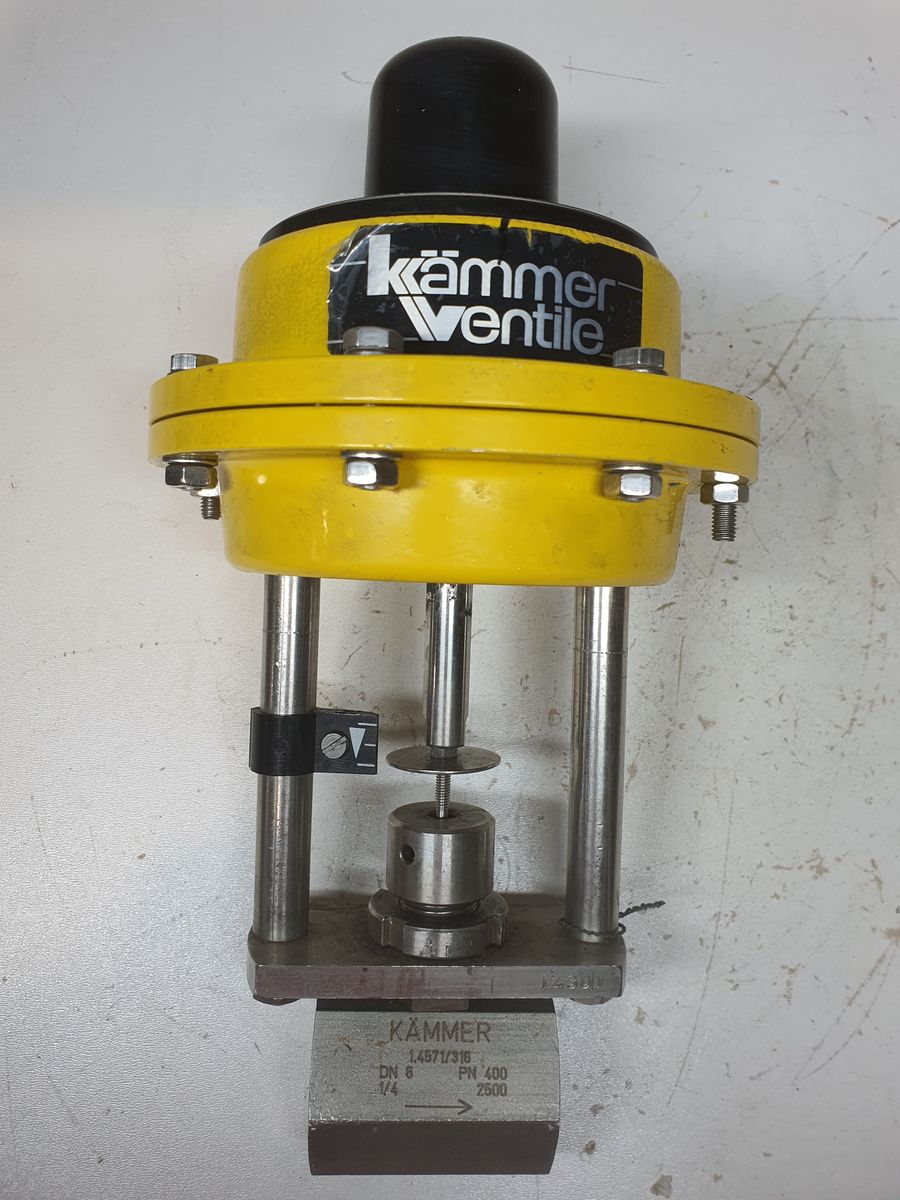

Control Valve by Kammer Ventile

Parameter	Specification
Manufacturer	Kämmer Ventile
Model	80047
Valve Type	Control Valve (Micro-flow / Globe type)
Nominal Size	1/4" (DN 8 approx.)
Pressure Rating	PN 400
Stroke	10 mm
Control Signal	Pneumatic: 3 – 7 bar
Actuation Type	Pneumatic (direct signal, no I/P required)
Supply Pressure	0.04 bar (likely instrument air reference; verify)
Spring Range	1.0 – 2.2 bar
Flow Characteristic	Linear (LIN)
Flow Coefficient (Kv)	Not specified (micro-flow typical)
Valve Plug Material	Stellite (Alloy 6)
Seat Ring Material	Stellite (Alloy 6)
Trim Type	Hardened trim (plug + seat)
Service Type	High-pressure, low-flow / severe service
Typical Applications	Chemical dosing, high ΔP control, sampling
