Tryktransmitter

Endress+Hauser PMP71-AAA1P111NAAA

SKU: 13017

På lager

Brugt
Indhentet fra arbejdsmiljø

Pris på forespørgsel

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Vigtigt: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garanti Perioder efter Tilstand

Ny 12 måneder

Renoveret 3 måneder

Brugt DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

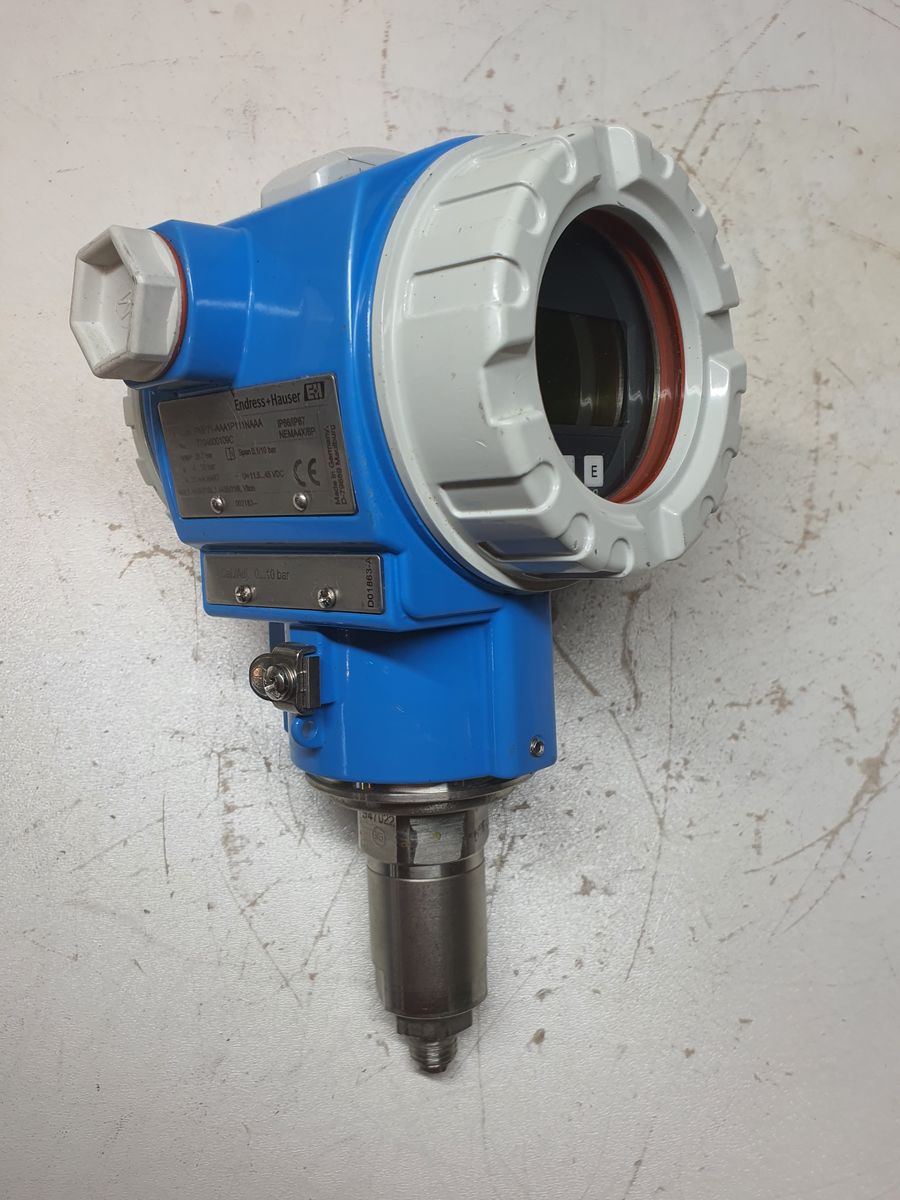

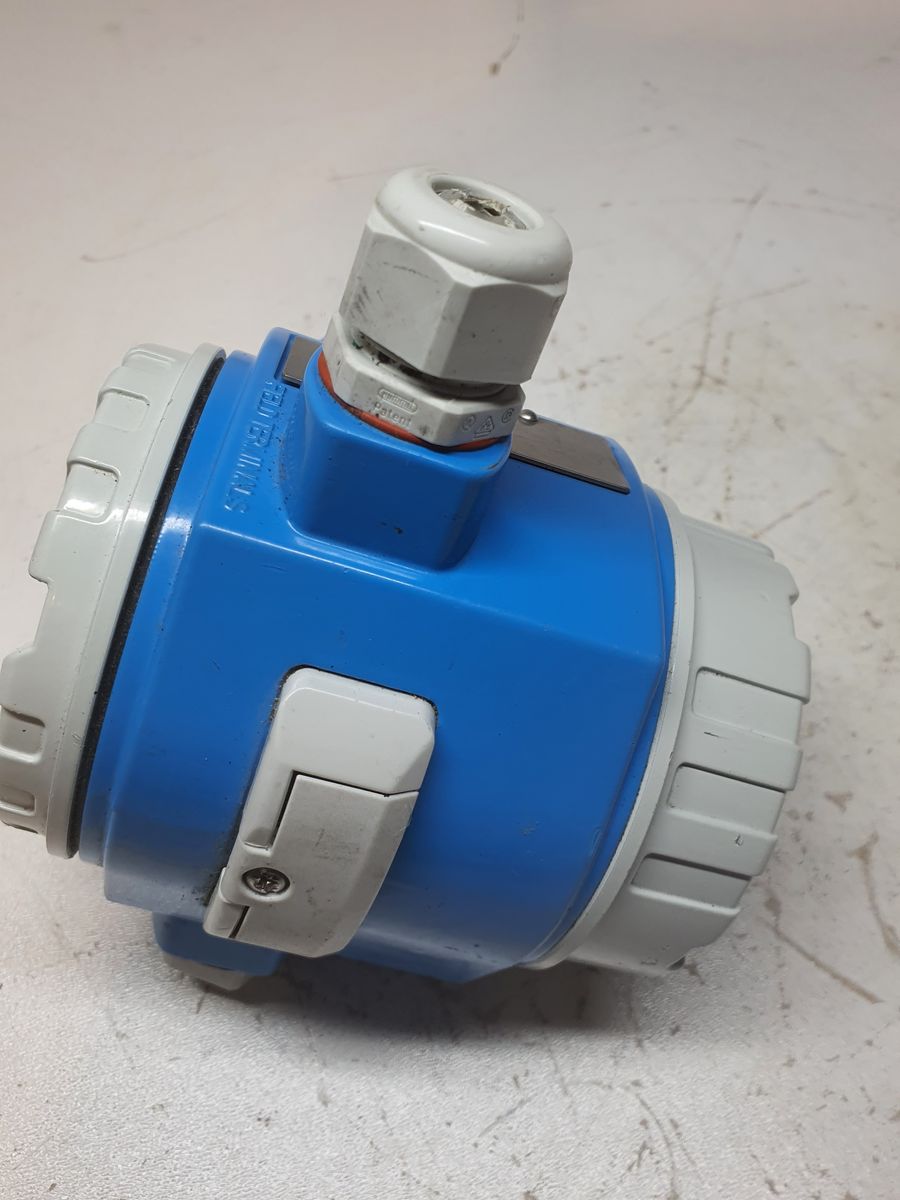

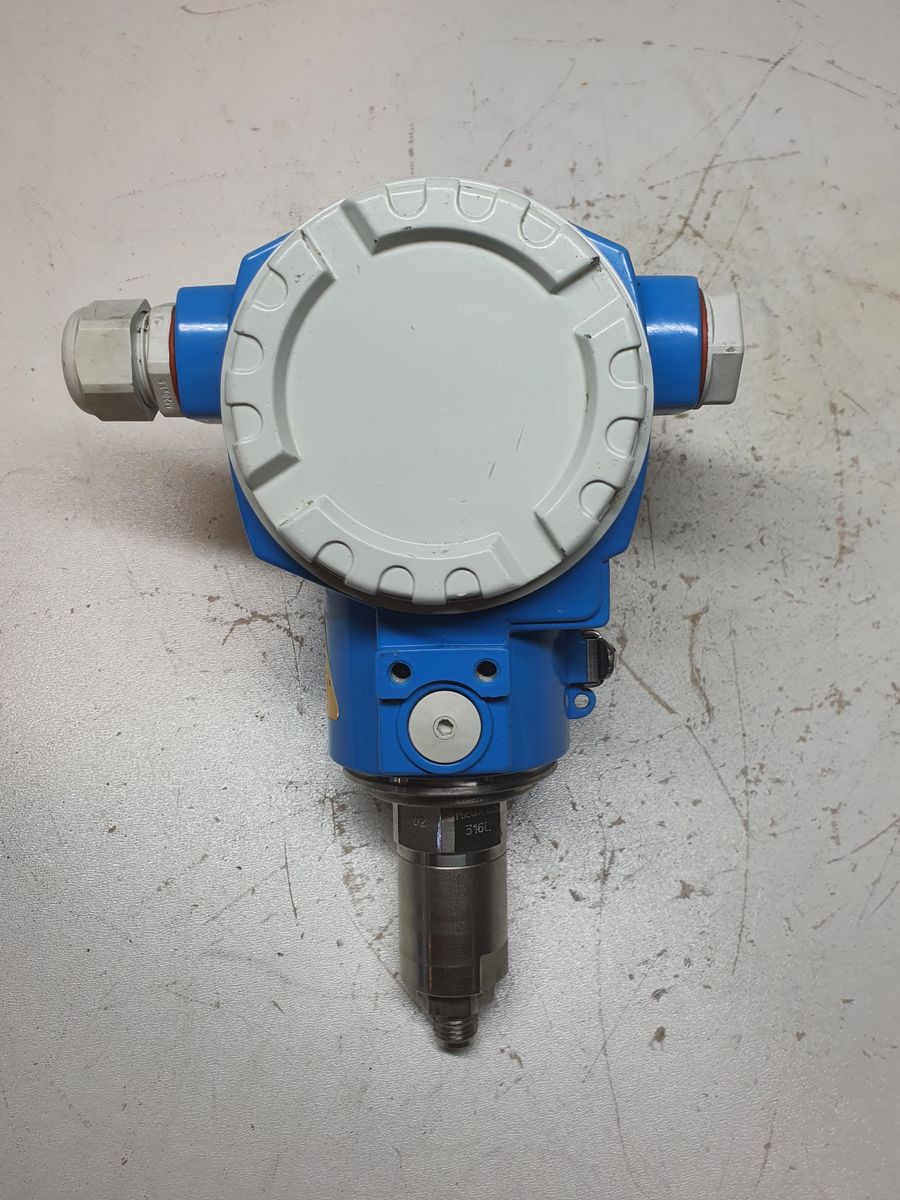

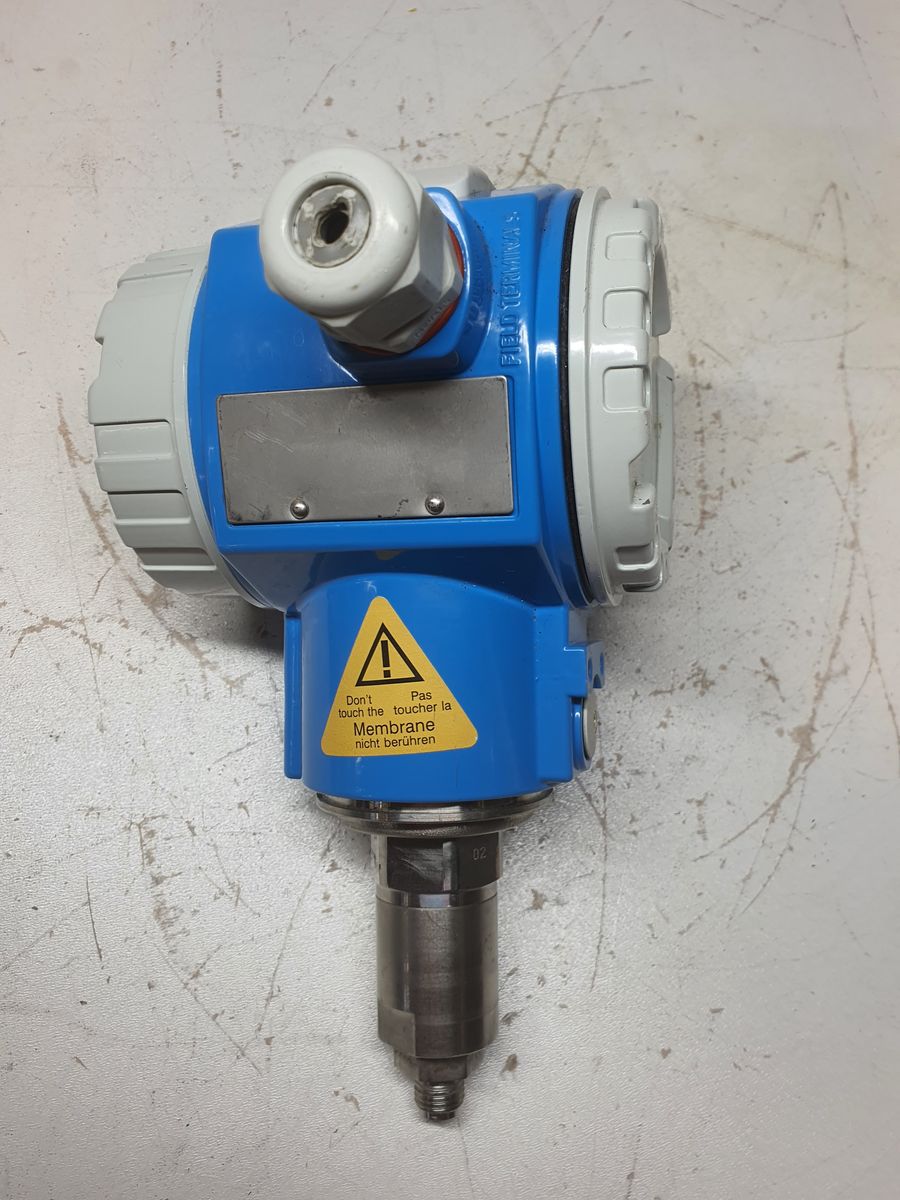

Endress+Hauser Cerabar S PMP71

Category	Parameter	Specification
Pressure Measurement	Pressure Type	Gauge pressure
	MWP	26.7 BAR
	Configured Span	0.1 … 10 bar
	Lower Range Value (LRV)	-1 bar (4 mA)
	Upper Range Value (URV)	10 bar (20 mA)
	Calibration / Adjustment Range	0 … 10 bar
Process Connection	Connection Type	½" NPT
	Material (Process-Wetted / Lower Part)	316L stainless steel
	Pressure Rating	Suitable for applications up to 400 bar
Output & Communication	Output Signal	4–20 mA
	Communication Protocol	HART
	Wiring	2-wire, loop-powered
	Supply Voltage	11.5 … 45 V DC
Materials & Construction	Sensor Material	Stainless steel
	Wetted Parts Material	316L stainless steel (½" NPT1 / 1.4435 / 1.4404)
	Gauge Transmitter Material	1.4435 / 316L stainless steel, 1.4404 / 316L stainless steel
Model & Ordering	Model	PMP71 (Cerabar S)

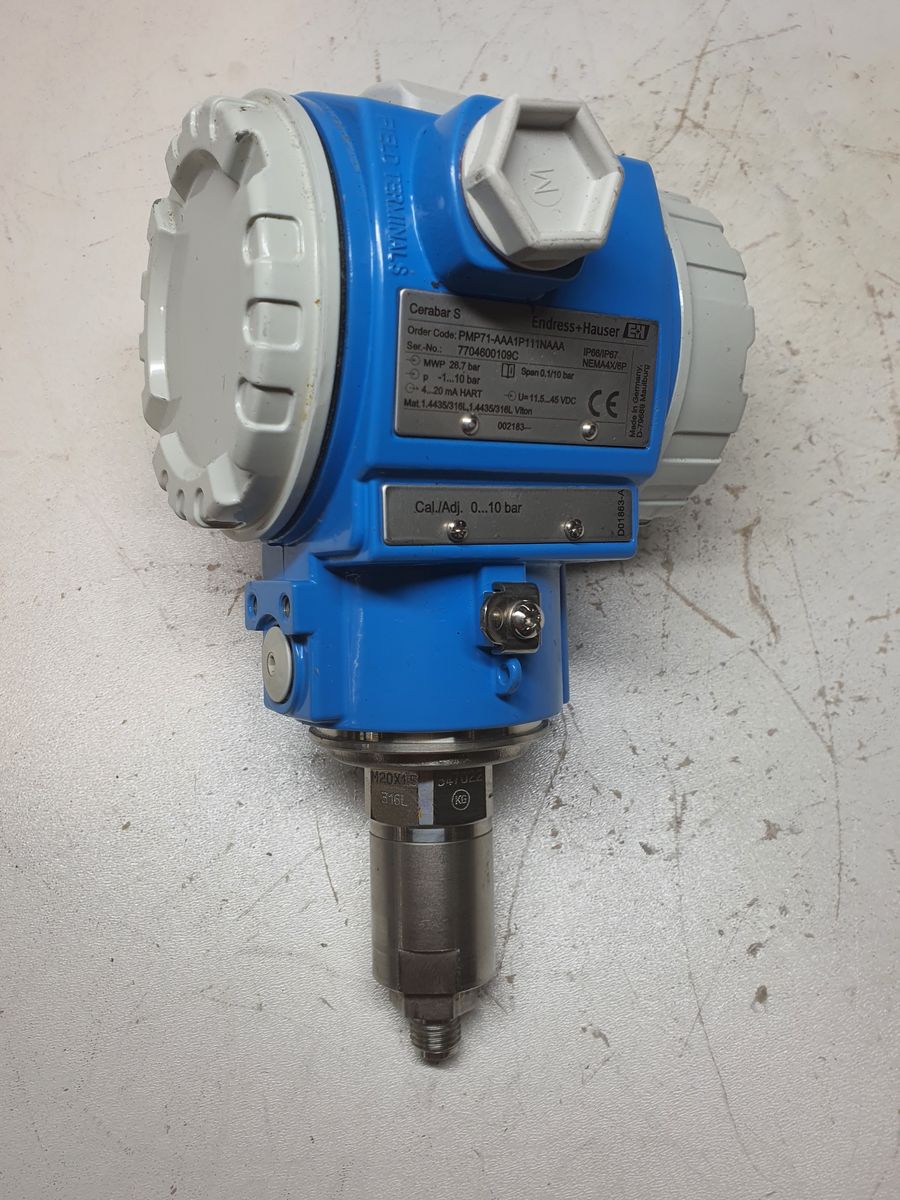

	Order Code	PMP71-AAA1P111NAAA

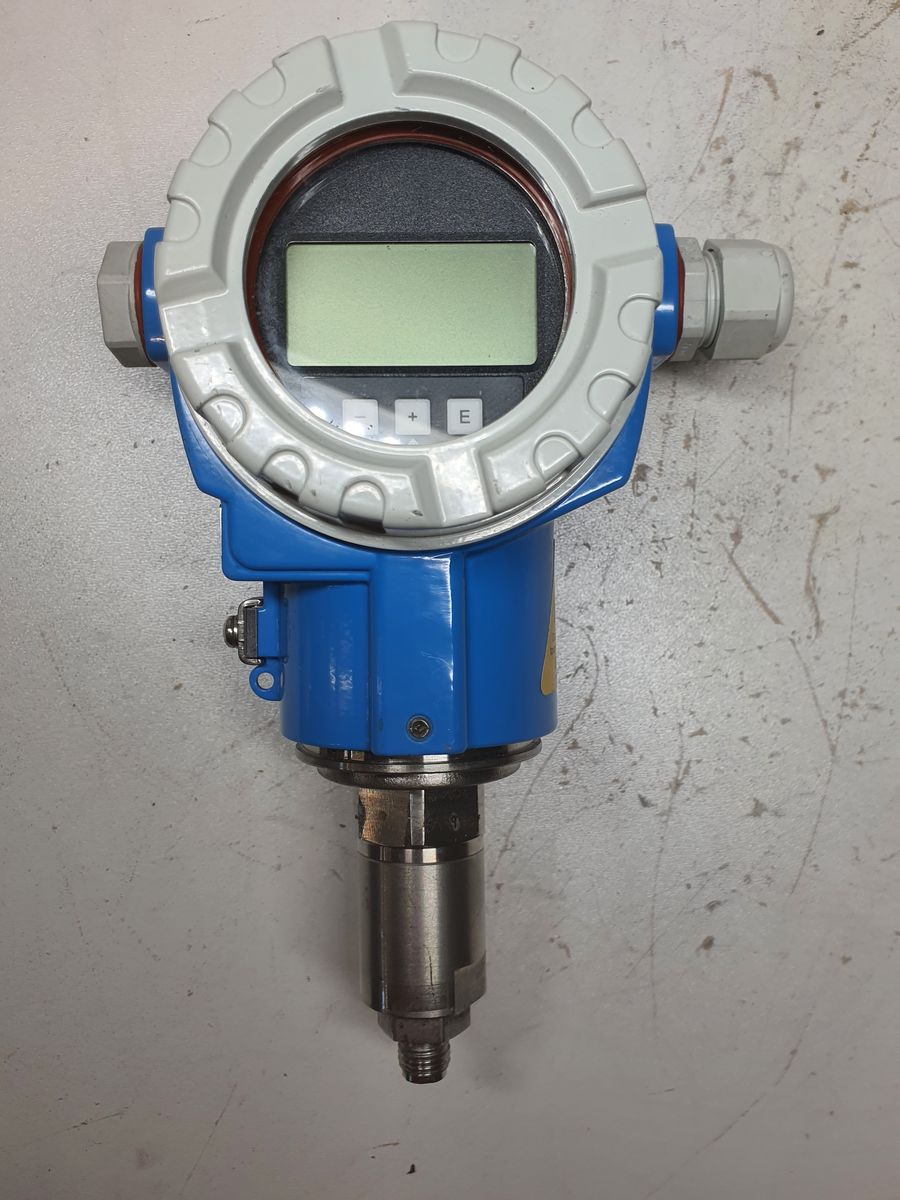

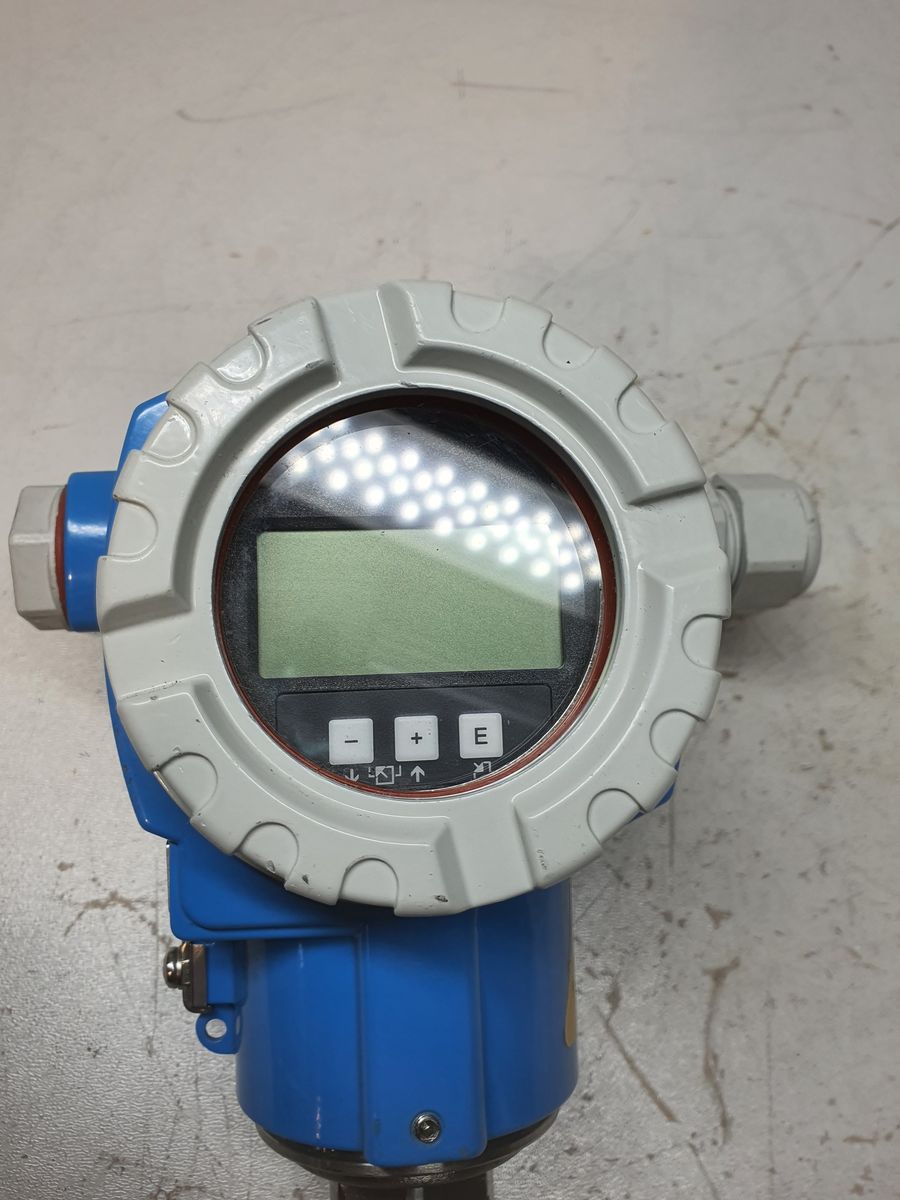

Display	Local Display	Integrated LCD
